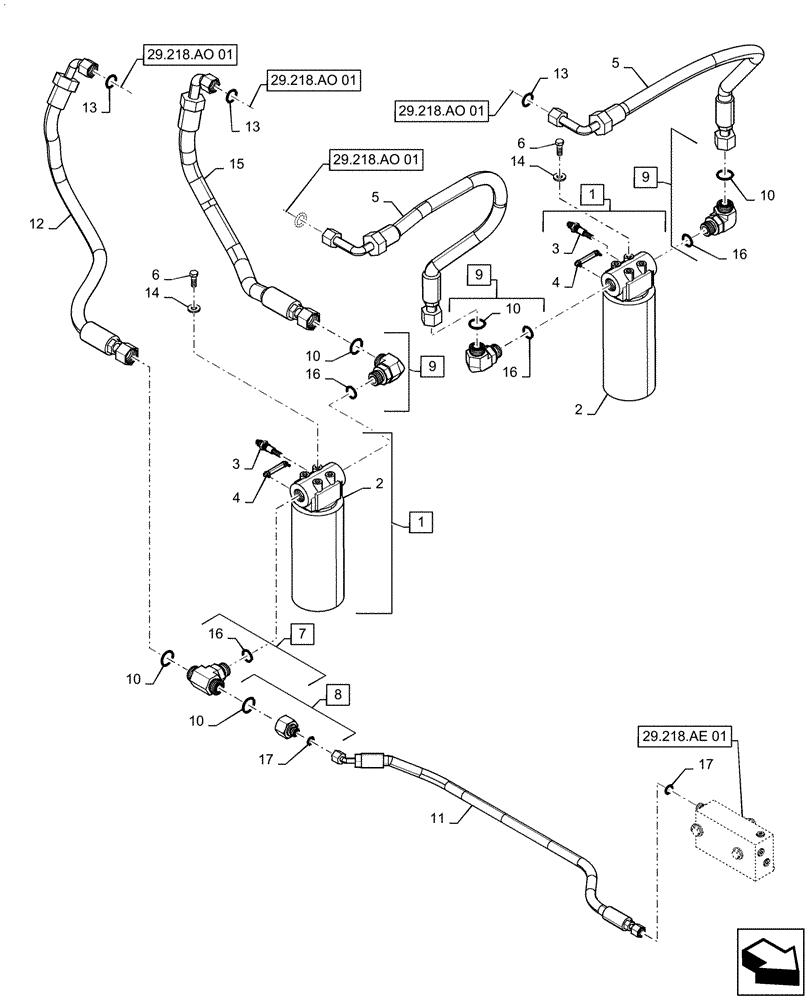

Запчасти Case IH PATRIOT 2250 (29.218.AB[01]) - HYDROSTATIC PUMP FILTERS, & LINES (29) - HYDROSTATIC DRIVE

1

84518878

HYDRAULIC OIL FILTER

Hydraulic, Complete Assembly, Incl 2 - 4

2шт.

2

84516422

HYDRAULIC OIL FILTER

Element, Spin On

2шт.

3

BN54258

SENDER UNIT

Electrical

2шт.

4

BN98626

INDICATOR

Visual

2шт.

5

47705191

HYDRAULIC HOSE

1" -14 ORFS Swivel Long Elbow x 1 3/16" -12 ORFS Swivel Short Straight, 1" ID x 27" Long, From Filter Elbow to Front Hydro

2шт.

6

87342767

BOLT

.375" x 1", DOR

8шт.

7

84379009

ADAPTER

Tee, 1-1/16 -12 ORB x 1-3/16 - 12 ORFS x 1-3/16 - 12 ORFS, Incl 10, 16

1шт.

8

84379013

ADAPTER

11/16 -16 ORFS x 1-3/16 -12 ORFS Incl 10, 17

1шт.

9

BN302568

ELBOW

1-3/16 -12 ORFS x 1-1/16 -12 ORB Incl 10, 16

3шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Included with 7 - 9

7шт.

11

47705195

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short 45 x 11/16" - 16 ORFS Swivel Short Straight, 3/8" ID x 33 1/2" Long, From Tee to Motor Control Valve

1шт.

12

47705192

HYDRAULIC HOSE

1 3/16" -12 ORFS Swivel Short Straight x 1" -14 ORFS Swivel Short Elbow, 5/8" ID x 27" Long, From Elbow to Rear Hydro

1шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

15

47705193

HYDRAULIC HOSE

1 3/16" -12 ORFS Swivel Short Straight x 1" -14 ORFS Swivel Short Elbow, 5/8" ID x 30" Long, From Tee to Rear Hydro

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Included with 9

4шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Included with 8

2шт.
