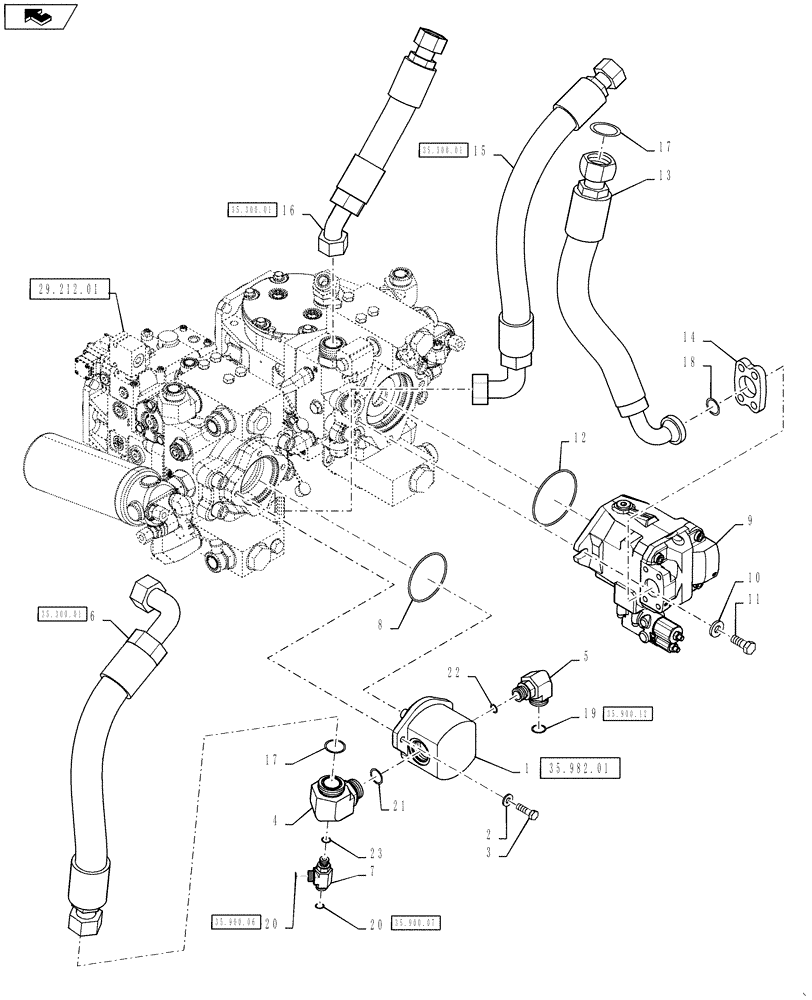

Запчасти Case IH 4430 (35.900.08) - GEAR PUMP AND PRESSURE COMPENSATED PUMP (35) - HYDRAULIC SYSTEMS

1

87266244

PUMP,22 CC

Gear, 1.39 Cubic Inch, LH Rotation

1шт.

See Fig 35.982.01 For Service Parts Breakdown

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

3

87635863

BOLT

3/8 -16" x 1.25", Gr 8, DOR

2шт.

4

BN313173

ADAPTER

Machined, 1-11/16" -12 ORFS x 1-5/16" -12 ORB x 9/16" -18 ORP

1шт.

5

BN53590

ELBOW

1-3/16" -12 ORFS x 7/8" -14 ORB

1шт.

6

87385792

HOSE

1-11/16" -12 ORFS Swivel x 1-11/16" -12 ORFS Swivel Short Elbow x 1-1/4" ID x 23.5" Long, Gear Pump To Reservoir

1шт.

7

BN302583

FITTING

11/16" -16 ORFS x 9/16" -18 ORB x 11/16" -16 ORFS

1шт.

8

14461081

O-RING,3.237" ID x 0.103" Width

Mounting Seal Between Gear Pump And LH Hydrostat

1шт.

9

BN316492

PUMP,28 CC

Pressure Compensated, 1.16 Cubic Inch

1шт.

BN316492R

REMAN-HYD PUMP

4430 TIER 4 (9/11-)

1шт.

BN316492C

CORE-HYDRAULIC PUMP

Return Number

1шт.

10

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

2шт.

11

87342927

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2"-13 x 1-1/4, G8

2шт.

12

87487840

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

Mounting Seal Between Pressure Compensated Pump And RH Hydrostat

1шт.

13

343888A1

HOSE

1-11/16" -12 ORFS Swivel x 1-1/4" Flange Code 61 Short Elbow x 1-1/4" ID x 20.25" Long, Pressure Compensated Pump To Reservoir

1шт.

14

BN316599

REPAIR KIT

Code 61 Flange Mounting Kit

1шт.

Incl 2 Clamps, 70921117, 4 Bolts, 9637916, 4 Lock Washers, 92-11044, 1 O Ring, 235757

1шт.

15

87545978

HOSE

1-11/16" -12 ORFS Swivel x 1-11/16" -12 ORFS Swivel Short Elbow x 1-1/4" ID x 29" Long, LH Hydrostat To Reservoir

1шт.

16

343995A1

HOSE ASSY.

1-11/16" -12 ORFS Swivel x 1-11/16" -12 ORFS Swivel 45 Degree Elbow x 1-1/4" ID x 16" Long, RH Hydrostat To Reservoir

1шт.

17

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1-11/16", ORFS

7шт.

18

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1-1/4", Flange

1шт.

19

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

1шт.

20

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

2шт.

21

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

1шт.

22

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

1шт.

23

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

1шт.
