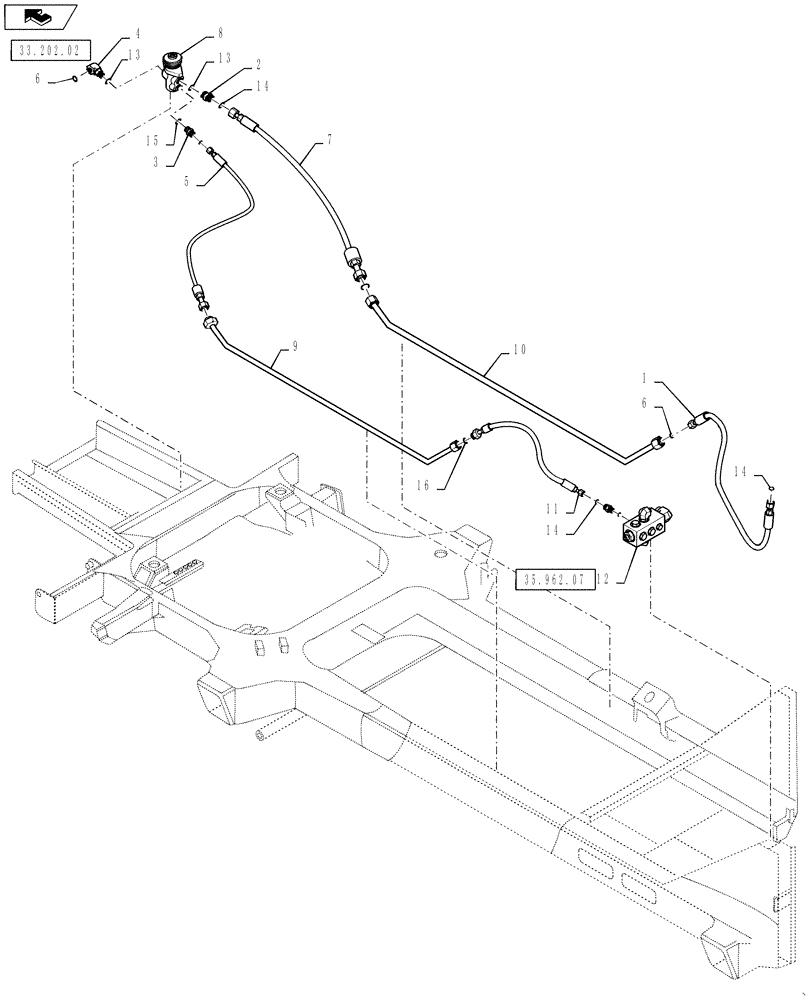

Запчасти Case IH 4430 (35.900.07) - BRAKE PEDAL HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

87651667

HOSE

9/16 -18 ORFS Swivel x 11/16 -16 ORFS Swivel x 1/4" ID X 63" Long, Return Steel Line To Gear Pump

1шт.

2

BN302641

FITTING

9/16-18 ORFS x 9/16-18 ORB

1шт.

3

BN302647

FITTING

11/16" -16 OFRS x 3/4" -16 ORB

1шт.

4

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB

1шт.

5

BN307827

HOSE ASSY.

9/16 -18 ORFS Swivel x 11/16 -16 ORFS Swivel Medium Elbow x 1/4" ID X 92" Long, Pressure Steel Line To Brake Valve

1шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

4шт.

7

BN325315

HOSE ASSY.

9/16 -18 ORFS Swivel x 11/16 -16 ORFS Swivel x 1/4" ID X 72" Long, Brake Valve To Return Steel Line

1шт.

8

380930A1

VALVE

Brake

1шт.

9

84279313

HYD TUBE

3/8", Dynamic Brake Return

1шт.

10

84279309

HYD TUBE

1/2", Steering And Dynamic Brake Pressure

1шт.

11

343293A1

HOSE

11/16 - 16 Female ORFS Swivel x 13/16 -16 Female ORFS Swivel x 3/8" ID x 24" Long, Pressure Manifold to Steel Line

1шт.

12

BN323902

MANIFOLD

Pressure

1шт.

See Fig 35.962.07 For Service Parts Breakdown

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

2шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

4шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

1шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

1шт.
