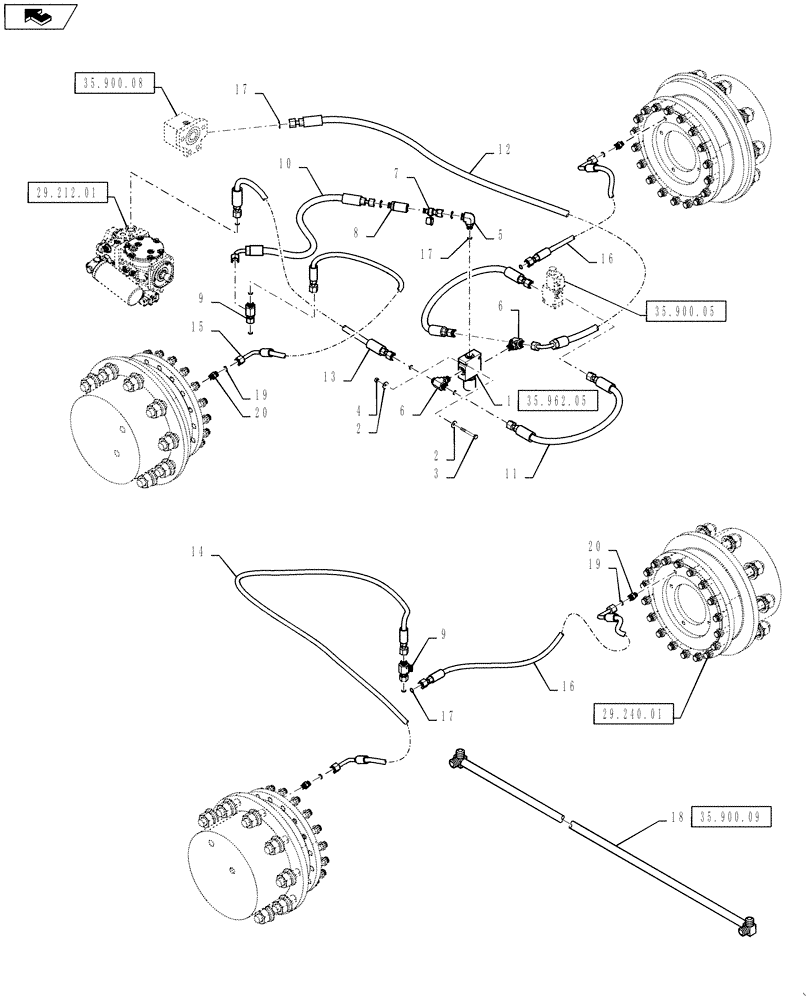

Запчасти Case IH 4430 (35.900.06) - PARK BRAKE GROUP (35) - HYDRAULIC SYSTEMS

1

87271739

VALVE SECTION

Park Brake Valve

1шт.

See Fig 35.962.05 For Service Parts Breakdown

1шт.

2

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

4шт.

3

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 1 X 50, 8.8, DOR

2шт.

4

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

5

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

1шт.

6

BN302536

FITTING

11/16-16 ORFS x 11/16-16 ORFS x 9/16-18 ORB

2шт.

7

BN307993

NIPPLE, LUBE

NIPPLE Diagnostic, 11/16-16 ORFS

1шт.

8

BN307992

COUPLING

Diagnostic, 1/4-18 NPT

1шт.

9

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

2шт.

10

87739926

HYDRAULIC HOSE,9.53mm ID x 610mm L, SAE 100R17

11/16 -16" ORFS Swivel Medium Elbow x 1/4 -18" NPT Fixed x 3/8" ID x 24" Long, Park Brake Valve to Steel Line

1шт.

11

84311314

HOSE ASSY.

11/16 -16" ORFS Swivel x 11/16 -16 ORFS Swivel x 3/8" ID x 23.25" Long, Drive Control Valve to Park Brake Valve

2шт.

12

87645589

HOSE

11/16 -16" ORFS Swivel Medium Elbow x 11/16 -16 ORFS Swivel x 3/8" ID x 90" Long, Park Brake Valve To Gear Pump

1шт.

13

BN307838

HOSE ASSY.

11/16 -16" ORFS Swivel x 11/16 -16 ORFS Swivel x 3/8" ID x 79" Long, Park Brake Valve To RH Hydrostat

1шт.

14

86986091

HOSE

11/16 -16" ORFS Swivel x 9/16 -18 ORFS Swivel Medium Elbow x 1/4" ID x 135" Long, Steel Line To RH Front Wheel Motor

1шт.

15

BN325851

HOSE ASSY.

11/16 -16" ORFS Swivel x 9/16 -18 ORFS Swivel Medium Elbow x 1/4" ID x 141" Long, Steel Line To RH Rear Wheel Motor

1шт.

16

BN325853

HOSE

11/16 -16" ORFS Swivel x 9/16 -18 ORFS Swivel Medium Elbow x 1/4" ID x 168" Long, Steel Line To LH Wheel Motor

2шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

18шт.

18

84279318

HYD TUBE

1/2", Park Brake Steel Line

1шт.

19

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

7шт.

20

BN305432

ADAPTER

9/16-18 x M12x1.5, Park Brake Fitting

4шт.
