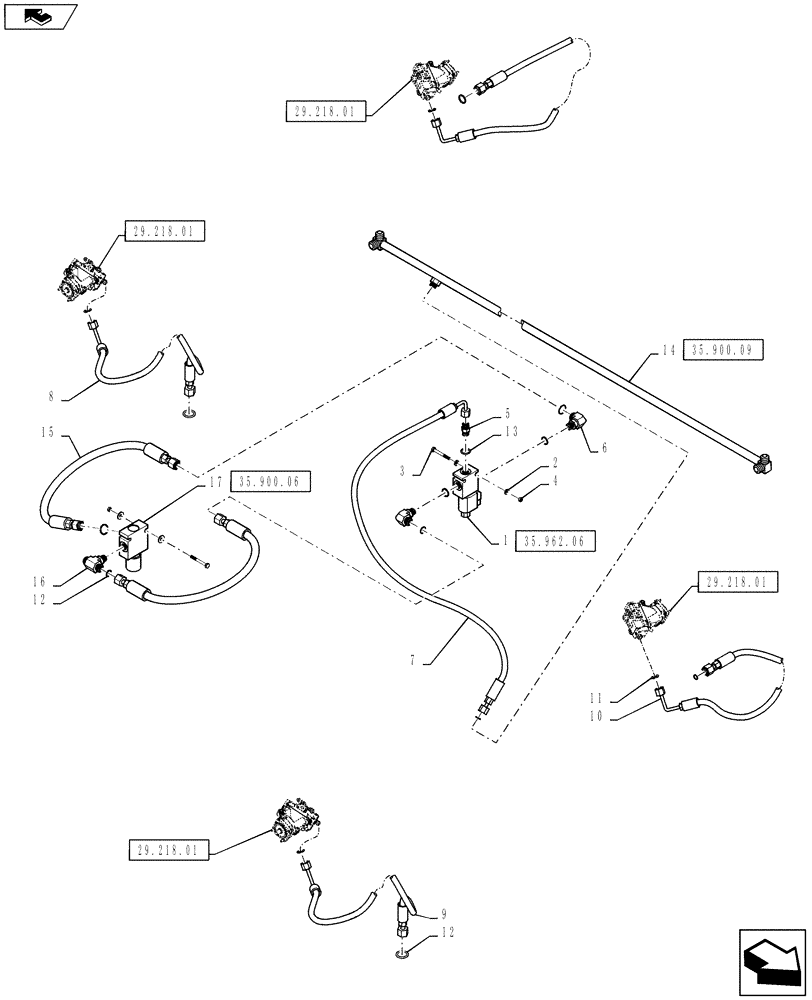

Запчасти Case IH 4430 (35.900.05) - DRIVE MOTOR CONTROL LINES (35) - HYDRAULIC SYSTEMS

1

87272002

HYDRAULIC VALVE

Motor Control

1шт.

See Fig 35.962.06 For Service Parts Breakdown

1шт.

2

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

4шт.

3

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 1 X 50, 8.8, DOR

2шт.

4

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

5

BN302641

FITTING

9/16-18 ORFS x 9/16-18 ORB

1шт.

6

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

7

87268131

HOSE

9/16 -18" ORFS Swivel Medium Elbow x 9/16 -18" ORFS Swivel x 1/4" ID x 47" Long, Control Valve To Steel Line

1шт.

8

BN325849

HOSE ASSY.

11/16 -16" ORFS Swivel x 9/16 -18" ORFS Swivel Long Elbow x 1/4" ID x 149" Long, Steel Line To RH Rear Wheel Motor

1шт.

9

86986088

HOSE

11/16 -16" ORFS Swivel x 9/16 -18" ORFS Swivel Long Elbow x 1/4" ID x 141" Long, Steel Line To RH Front Wheel Motor

1шт.

10

BN325850

HOSE

11/16 -16" ORFS Swivel x 9/16 -18" ORFS Swivel Long Elbow x 1/4" ID x 169" Long, Steel Line To LH Wheel Motors

2шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

6шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

8шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

5шт.

14

84279311

HYD TUBE

1/2", Drive Motor Control Tube

1шт.

15

84311314

HOSE ASSY.

11/16 -16" ORFS Swivel x 11/16 -16 ORFS Swivel x 3/8" ID x 23.25" Long, Drive Control Valve to Park Brake Valve

2шт.

16

BN302536

FITTING

11/16-16 ORFS x 11/16-16 ORFS x 9/16-18 ORB

2шт.

17

87271739

VALVE SECTION

Park Brake Valve

1шт.
