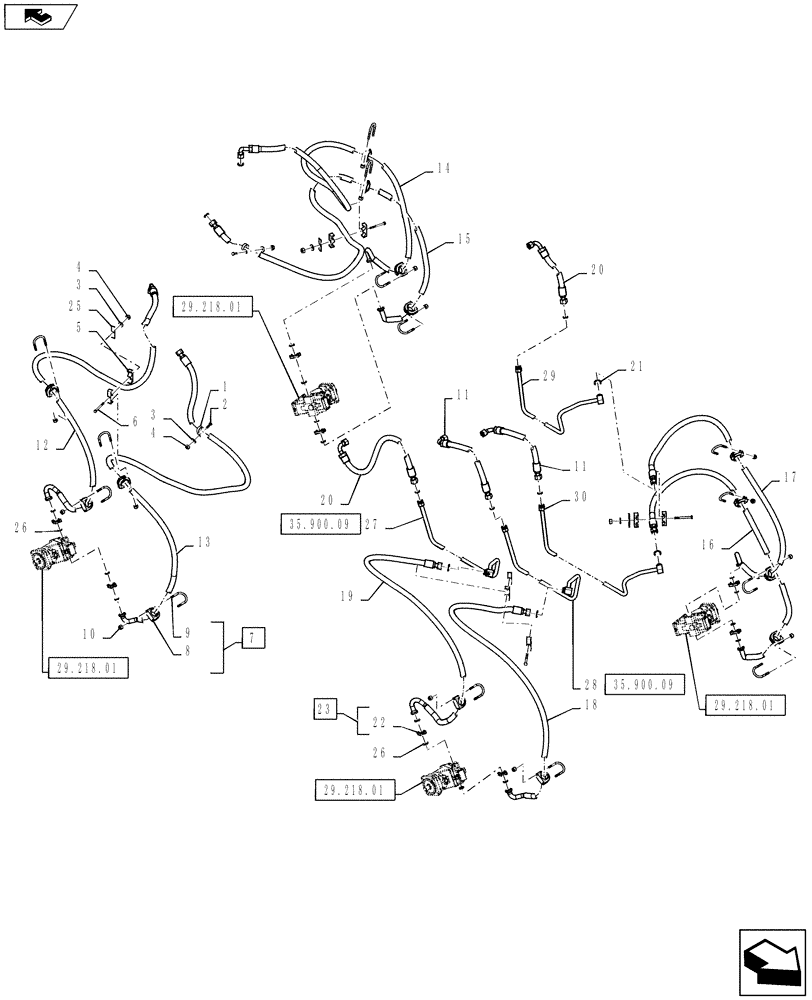

Запчасти Case IH 4430 (35.900.04) - DRIVE LINES GROUP (35) - HYDRAULIC SYSTEMS

1

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

2

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

3

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

6шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

5

BN67495

CLAMP

Dual Hose, 1-1/2 OD Hose

4шт.

6

86980388

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

M8-1.25 X 80, 8.8, DOR

4шт.

7

BN320383

CLAMP

Assembly, 1-1/4" Hose, Includes Ref 8 - 10

16шт.

8

BN320382

INSERT

1-1/4" Pipe Nylon Clamp

1шт.

9

BN320373

U-BOLT

BOLT "U" 3/8"-16 x 2.18 id

1шт.

10

87343970

NUT,3/8"-16, G8, DOR

2шт.

11

84331135

HOSE ASSY.,25.4mm ID x 1981mm L, SAE 100R13

1-7/16 -12 ORFS Swivel x 1-7/16 -12 ORFS Swivel Short Elbow x 1" ID x 78", Hydrostat to Steel Line

2шт.

12

84307632

HOSE ASSY.,25.4mm ID x 4724mm L, SAE 100R13

1-7/16 -12 ORFS Swivel Short Elbow x 1" Flange Code 62, 1" ID x 186", LH Hydrostat to RH Rear Wheel Motor

1шт.

13

84307598

HOSE ASSY.,25.4mm ID x 4927mm L, SAE 100R13

1-7/16 -12 ORFS Swivel x 1" Flange Code 62, 1" ID x 194", LH Hydrostat to RH Rear Wheel Motor

1шт.

14

84307647

HOSE ASSY.,25.4mm ID x 4724mm L, SAE 100R13

1-7/16 -12 ORFS Swivel Short Elbow x 1" Flange Code 62, 1" ID x 186", RH Hydrostat to LH Rear Wheel Motor

1шт.

15

84307618

HOSE ASSY.

1-7/16 -12 ORFS Swivel x 1" Flange Code 62, 1" ID x 194", RH Hydrostat to LH Rear Wheel Motor

1шт.

16

BN307797

HOSE ASSY.,25.4mm ID x 2819.4mm L, SAE 100R13

1-7/16 -12 ORFS Swivel x 1" Flange Code 62, 1" ID x 111", Steel Line to LH Front Wheel Motor

1шт.

17

BN307796

HOSE ASSY.,25.4mm ID x 2717.8mm L, SAE 100R13

1-7/16 -12 ORFS Swivel x 1" Flange Code 62, 1" ID x 107", Steel Line to LH Front Wheel Motor

1шт.

18

BN307798

HOSE ASSY.,25.4mm ID x 2819.4mm L, SAE 100R13

1-7/16 -12 ORFS Swivel x 1" Flange Code 62, 1" ID x 111", Steel Line to RH Front Wheel Motor

1шт.

19

BN307799

HOSE ASSY.,25.4mm ID x 2717.8mm L, SAE 100R13

1-7/16 -12 ORFS Swivel x 1" Flange Code 62, 1" ID x 107", Steel Line to RH Front Wheel Motor

1шт.

20

84308035

HOSE ASSY.

1-7/16 -12 ORFS Swivel x 1-7/16 -12 ORFS Swivel Short Elbow x 1" ID x 65", Hydrostat to Steel Line

2шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

16шт.

22

BN52315

KIT

1" Split Flange For Code 62 Fittings, Contains 1 Oring, 2 Flange Halves, and 4 Socket Head Bolts

8шт.

23

BN52317

O-RING

Included in Ref 22

8шт.

24

BN570007

STRAP

Black Only .12-4.0 Band, Not Shown

30шт.

25

BN309850

PLATE

Dual Hose Clamp

4шт.

26

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

Code 62 Flange Fitting

8шт.

27

84279315

HYD TUBE

1" OD, Drive Pressure, A1

1шт.

28

84279314

HYD TUBE

1" OD, Drive Pressure, B1

1шт.

29

84279316

HYD TUBE

1" OD, Drive Pressure, A2

1шт.

30

84279317

HYD TUBE

1" OD, Drive Pressure, B2

1шт.

See Fig 35.900.09 For Parts Used to Mount Steel Lines To Frame

1шт.
