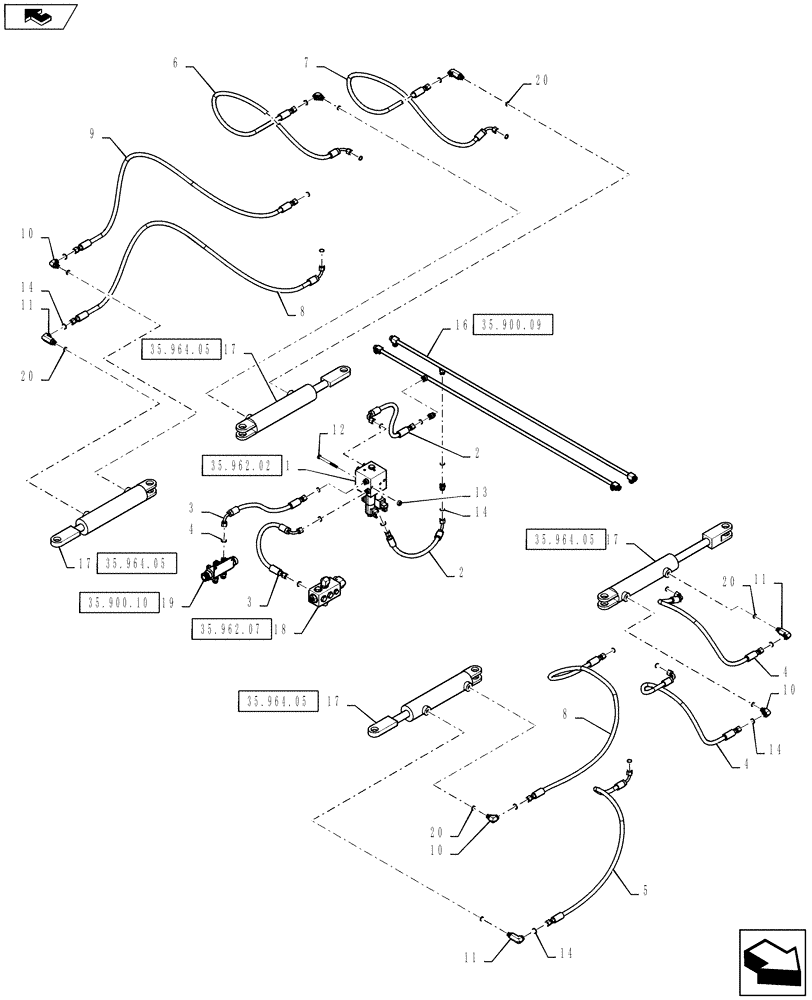

Запчасти Case IH 4430 (35.900.03) - AXLE WIDTH HYDRAULIC GROUP (35) - HYDRAULIC SYSTEMS

1

87393150

CONTROL VALVE

Axle Adjust and Boom Height Valve Bank

1шт.

See Fig 35.962.02 For Service Parts Breakdown

1шт.

2

BN307814

HOSE

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 24.5", 2 Bank Valve To Steel Lines

2шт.

3

BN307824

HOSE ASSY.

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 19.5", 2 Bank Valve To Pressure/Return Manifolds

2шт.

4

BN322525

HOSE ASSY.

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 48", Steel Line to Front LH Cylinder

2шт.

5

BN317622

HOSE ASSY.,9.53mm ID x 1498.6mm L, SAE 100R17

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 59", Steel Line to RH Front Cylinder, Rod End

1шт.

6

BN322523

HYDRAULIC HOSE

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 55", Steel Line to LH Rear Cylinder, Base End

1шт.

7

BN317622

HOSE ASSY.,9.53mm ID x 1498.6mm L, SAE 100R17

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 59", Steel Line to LH Rear Cylinder, Rod End

1шт.

8

BN307873

HOSE

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel x 3/8" ID x 61", Steel Line to RH Cylinder, Base End

2шт.

9

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 64", Steel Line to RH Rear Cylinder, Rod End

1шт.

10

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

11

BN302419

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Long Elbow

4шт.

12

86980411

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

24шт.

15

BN570007

STRAP

Black Only .12-4.0 Band, Not Shown

2шт.

16

84279312

HYD TUBE

1/2", Axle Adjust

2шт.

See Fig 35.900.09 For Parts Used to Mount Steel Lines To Frame

1шт.

17

87267921

CYLINDER,Double Acting, 31.75mm Rod, 469.9mm Stroke

2.50 x 18.5 x 1.25, Axle Width Cylinder

4шт.

See Fig 35.964.05 For Service Parts Breakdown

1шт.

18

BN323902

MANIFOLD

Pressure

1шт.

See Fig 35.962.07 For Service Parts Breakdown

1шт.

19

BN307639

MANIFOLD

Return Manifold

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

8шт.
