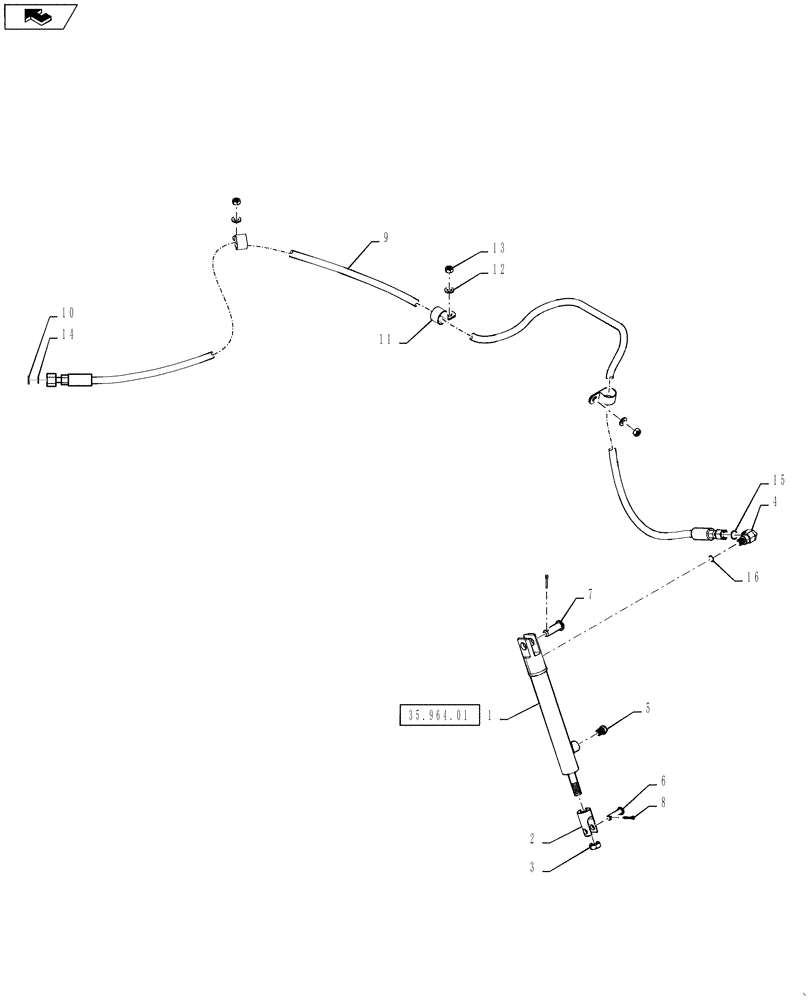

Запчасти Case IH 4430 (35.900.01[01]) - LADDER HYDRAULICS BSN YDT036001 (35) - HYDRAULIC SYSTEMS

1

87266443

HYDRAULIC CYLINDER,12.7mm Rod, 152.4mm Stroke

1 x 6 x 0.5, Complete

1шт.

See Fig 35.964.01 For Service Parts Breakdown

1шт.

2

BN21982

CLEVIS,1/2" - 20

1" Diameter, 1/2"-20 Thread

1шт.

3

BN50075

NUT

1/2"-20, Stainless Steel

1шт.

4

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, ZND

1шт.

5

87267314

BREATHER

Sintered, -4 SAE

1шт.

6

439-1620

HEADED PIN,3/8" x 1 1/4", G2

1шт.

7

439-1824

HEADED PIN,1/2" x 1 1/2", G2

1шт.

8

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

9

84127939

HOSE ASSY.

9/16-18 ORFS x 11/16-16 ORFS x 122" Long, Ladder To Park Brake Steel Line

1шт.

10

BN313268

ORIFICE

.042, -6 Disk

1шт.

11

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

3шт.

12

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

3шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

1шт.

15

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

1шт.

16

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

1шт.
