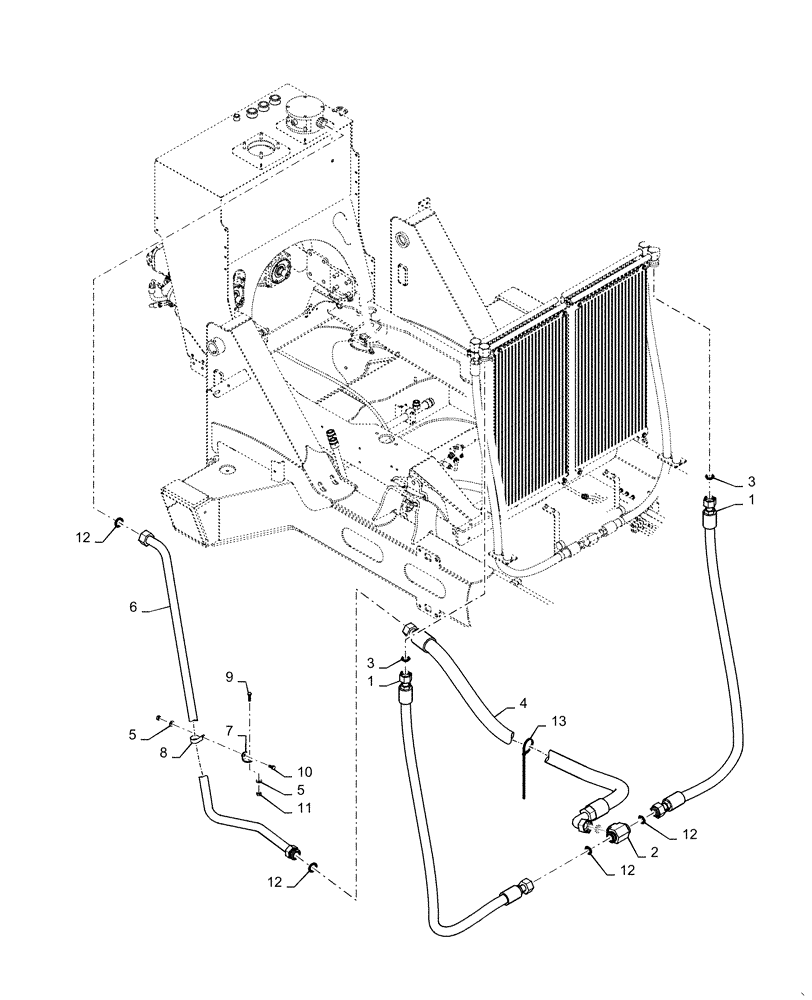

Запчасти Case IH 4430 (35.300.04) - HYDRAULIC OIL COOLER RETURN LINES (35) - HYDRAULIC SYSTEMS

1

84485121

HOSE ASSY.

1-7/16-12 ORFS Female Swivel x 1-11/16-12 ORFS Female Swivel x 1" ID x 65" Long

2шт.

2

84485117

UNION TEE

1-11/16-12 ORFS

1шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

2шт.

4

84519503

HYDRAULIC HOSE

1-11/16-12 ORFS Female Swivel Short Elbow x 1-11/16-12 ORFS Female Swivel x 1-1/4" ID x 57.125" long

1шт.

5

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

6

84517744

HYD TUBE

Hydraulic Oil Return

1шт.

7

84272701

SUPPORT

Return Tube

1шт.

8

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

1шт.

9

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

12

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1-11/16", ORFS

5шт.

13

BN570007

STRAP

Black Only .12-4.0 Band

2шт.
