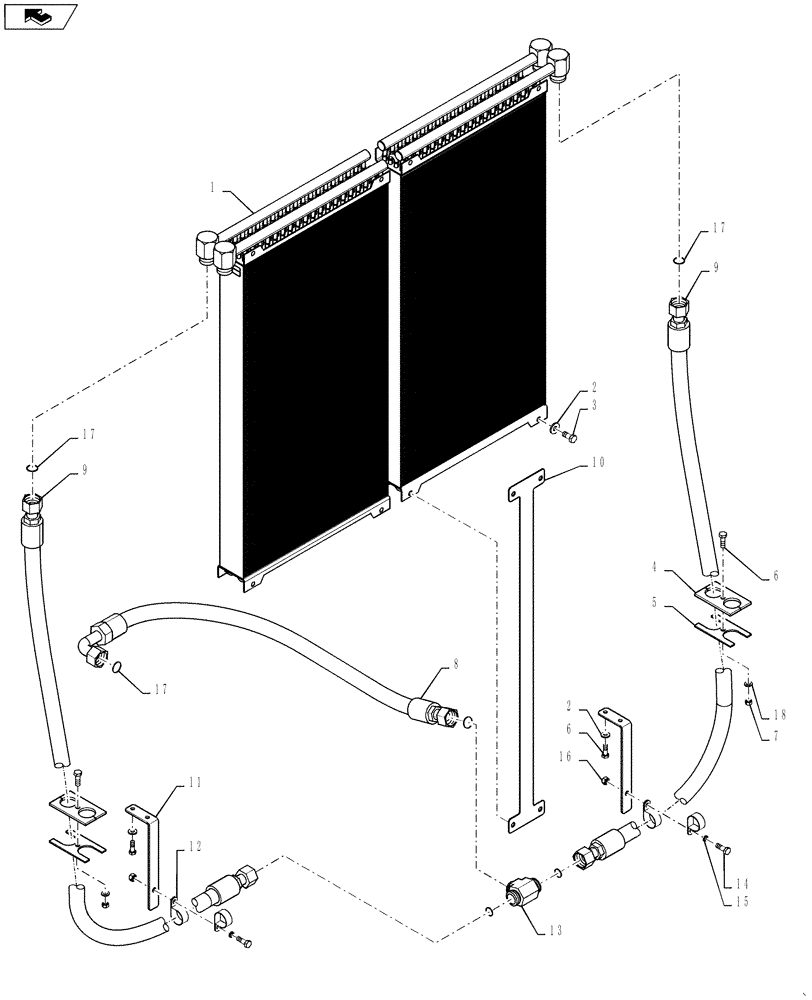

Запчасти Case IH 4430 (35.300.03) - HYDRAULIC OIL COOLER (35) - HYDRAULIC SYSTEMS

1

84427916

OIL COOLER

Hydraulic

2шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

12шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

4

84304713

SEAL

Hoses

2шт.

5

84304711

PLATE

Hoses

2шт.

6

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

7

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

8

87270612

HOSE,25.4mm ID x 1118mm L

1-7/16-12 Female ORFS Swivel x 1-7/16-12 Female ORFS Swivel Short Elbow x 1" ID x 44" Long, From Return Manifold

1шт.

9

84485120

HOSE ASSY.

1-7/16-12 Female ORFS Swivel x 1-7/16-12 Female ORFS Swivel x 1" ID x 65" Long

2шт.

10

84474864

SPACER

Oil Cooler

1шт.

11

84481443

SUPPORT

Hoses

2шт.

12

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

4шт.

13

84485115

UNION TEE

1-7/16-12, ORFS

1шт.

14

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

15

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

16

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

17

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

6шт.

18

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.
