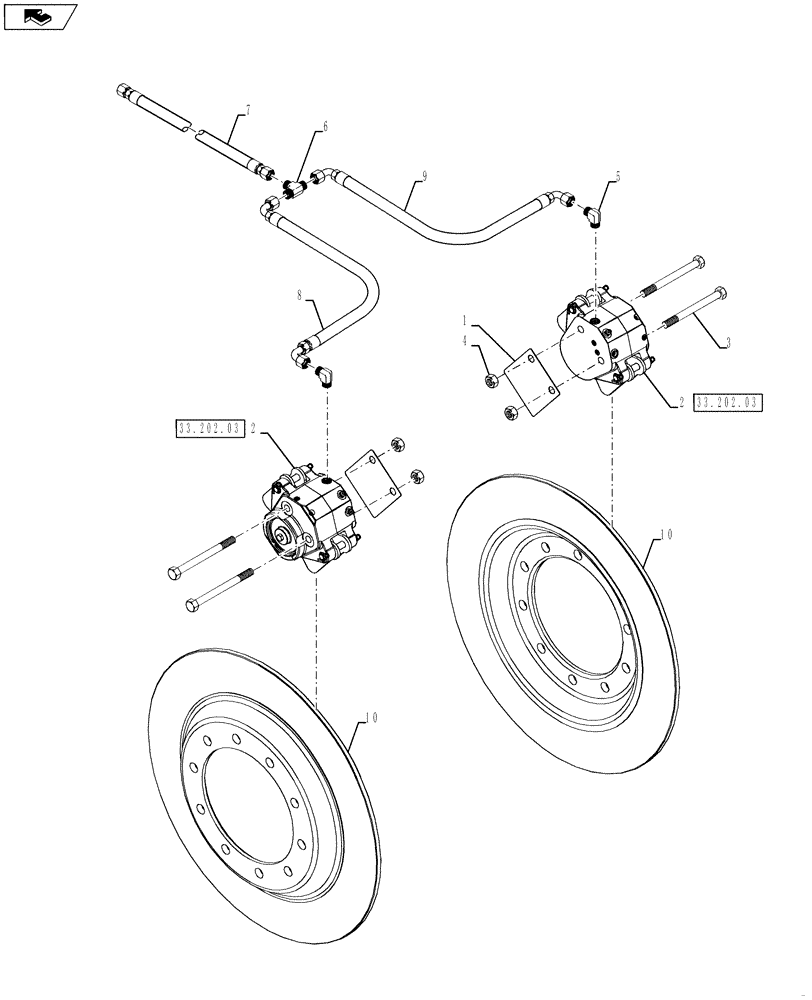

Запчасти Case IH 4430 (33.202.02) - DYNAMIC BRAKE GROUP (33) - BRAKES & CONTROLS

1

84340467

SPACER

Brake Caliper

2шт.

2

87493788

BRAKE CALIPER

Disc Brake

2шт.

3

87341864

BOLT,Hex, M16 x 160mm, Cl 10.9

M16 x 160 CL10.9 DOR

4шт.

4

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

5

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, ZND

2шт.

6

BN302511

FITTING

9/16-18 ORFS

1шт.

7

87269302

HOSE

-4 x 70", Runs To Brake Valve

1шт.

8

BN307829

HOSE ASSY.

-4 x 154.5"

1шт.

9

BN324552

HOSE ASSY.

-4 x 140"

1шт.

10

BN301666

BRAKE DISC

27.875" Dia.

2шт.
