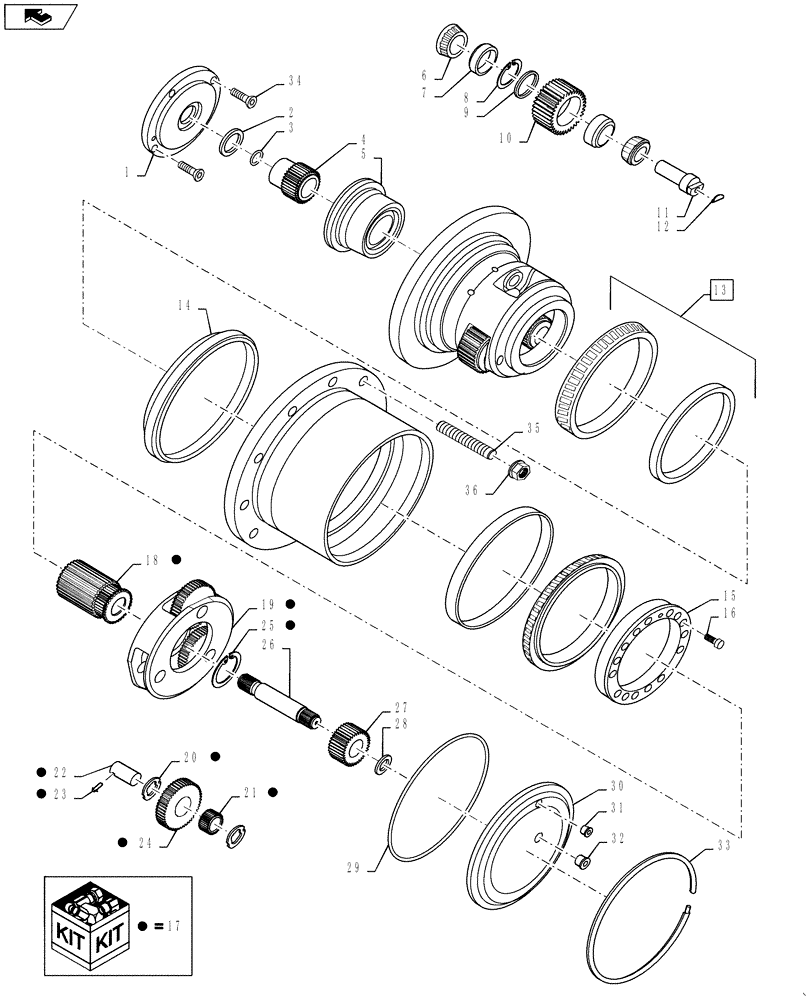

Запчасти Case IH 4430 (29.240.03) - REAR PLANETARY GEARBOX, 28:1 RATIO (29) - HYDROSTATIC DRIVE

0

84163263

CARRIER,Assembly, Rear Planetary Gearbox

Planetary 28:1, With Lip Seal Lobed Brake, Rear, Complete, Includes Ref 1 Thru 35

1шт.

84163263R

REMAN-WHEEL END ASSY

4430 TIER 4 (9/11-)

1шт.

84163263C

HUB

Return Number

1шт.

1

87270205

ADAPTER

Mounting

1шт.

2

87270230

THRUST WASHER

1шт.

3

87270219

RING

Retaining

1шт.

4

87270192

COUPLING

Wheel Motor, Serial Range: Shaft-Brake

1шт.

5

84233382

BRAKE

Input

1шт.

6

87476756

BEARING CONE

Cone

6шт.

7

87476757

BEARING CUP

Cup

6шт.

8

87476761

SNAP RING

Internal

3шт.

9

87476760

THRUST WASHER

Thrust, 1.900 x .092

3шт.

10

87270201

GEAR, PLANETARY

GEAR, PLANET

3шт.

11

87570209

SHAFT

Planetary Sun Gear

3шт.

12

87270213

SHIM

Steel

3шт.

13

87271162

TAPERED BEARING

Tapered Cup And Cone

2шт.

14

87686094

SEAL,234.26mm ID x 269.11mm OD x 23.98mm Thk

2 Lip

1шт.

15

87270204

BEARING CARRIER

6.143" ID x 6.850" OD

1шт.

16

87270223

BOLT

SKT-UNC

15шт.

17

84235298

CARRIER

Assembly, Planetary Hub, 28:1, Includes Ref 18 Thru 25

1шт.

18

87270195

SUN GEAR

Carrier

1шт.

19

84250144

CARRIER

Planetary, Housing Only

1шт.

20

87270231

THRUST WASHER,53.6mm ID x 100mm OD x 7mm Thk

6шт.

21

87270209

NEEDLE BEARING

48шт.

22

87270196

SHAFT

Planetary

3шт.

23

87270221

ROLL

Pin

3шт.

24

87270200

GEAR, PLANETARY

GEAR, PLANET Planetary Sun Gear

3шт.

25

87476758

RING

Retaining

1шт.

26

87270191

SHAFT

Input

1шт.

27

87270194

GEAR

Input

1шт.

28

87270208

THRUST WASHER

1шт.

29

87476759

RUBBER RING,0.139" Thk x 9.734" ID, -273

O-Ring

1шт.

30

87270206

COVER

Plate

1шт.

31

87270229

PLUG

Pipe, 9/16", Inc -18 Oring

1шт.

32

87270228

PLUG

Pipe, 3/4", Magnetic, Inc -16 Oring

1шт.

33

87270218

RING

Retaining

1шт.

34

87270224

BOLT

Flat Head, Hex Socket, Used on Ref 1

4шт.

35

87270233

STUD

Double Ended, 97mm Long, Wheel Bolt, M22x1.5 x 67mm

10шт.

36

BN315229

WHEEL NUT

Flange, Wheel, 22 mm

10шт.

37

84233385

SEAL KIT

Brake Hub, Not Shown

1шт.

38

BN305432

ADAPTER

9/16-18 x M12x1.5, Park Brake Fitting, Not Shown

1шт.
