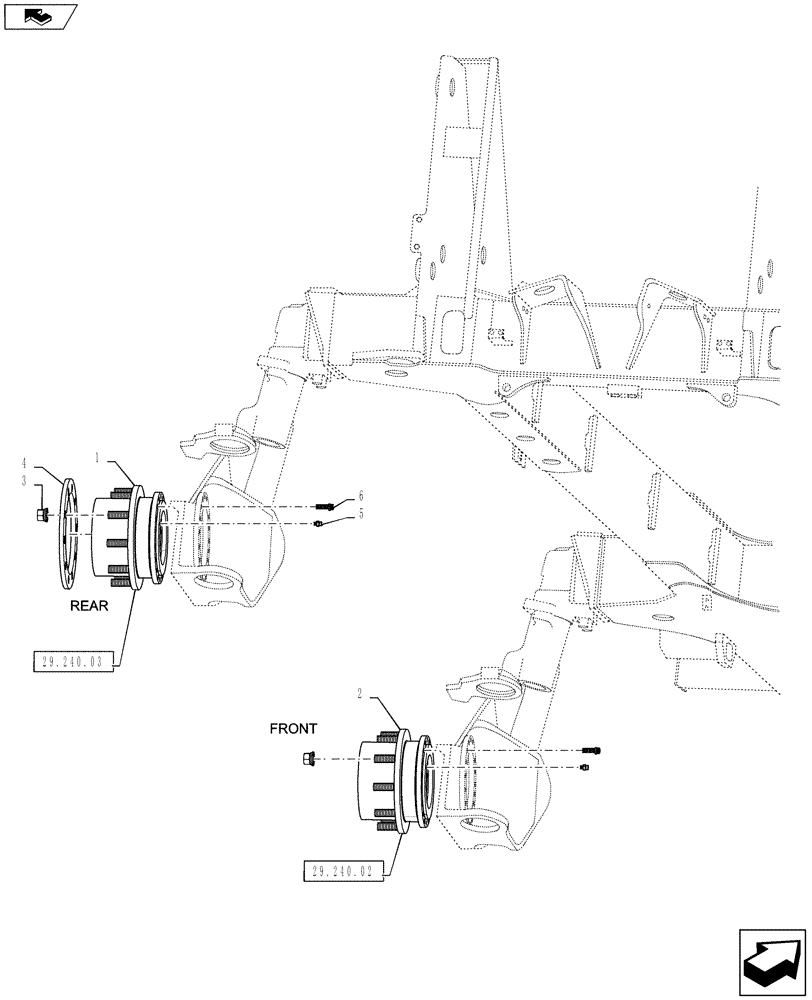

Запчасти Case IH 4430 (29.240.01) - PLANETARY WHEEL HUB MOUNTING GROUP (29) - HYDROSTATIC DRIVE

1

84163263

CARRIER,Assembly, Rear Planetary Gearbox

Planetary 28:1, With Lip Seal Lobed Brake, Rear

2шт.

See Fig 29.240.03 For Service Parts Breakdown

1шт.

84163263R

REMAN-WHEEL END ASSY

4430 TIER 4 (9/11-)

2шт.

84163263C

HUB

Return Number

1шт.

2

84163261

HUB,Planetary

Planetary 21:1 With Lip Seal Lobed Brake, Front

2шт.

See Fig 29.240.02 For Service Parts Breakdown

1шт.

3

BN315229

WHEEL NUT

Flange, Wheel, 22 mm

40шт.

4

BN306152

SPACER

Wheel Hub, Used On Rear Only

2шт.

5

BN305432

ADAPTER

9/16-18 x M12x1.5, Park Brake Fitting

4шт.

6

BN304226

BOLT

M16-2 x 45mm, Flange Head, CL 10.9

72шт.
