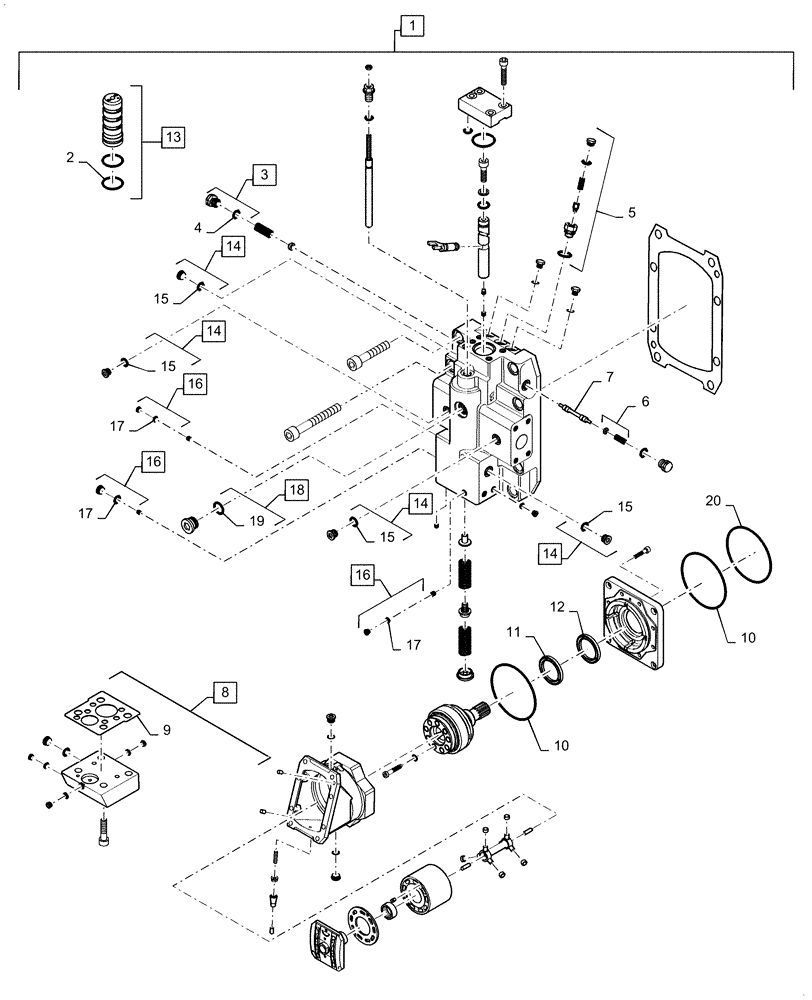

Запчасти Case IH 4430 (29.218.02) - WHEEL MOTOR BREAKDOWN, SERIES 51, 80 CC (29) - HYDROSTATIC DRIVE

1

BN325931

HYDRAULIC MOTOR

Wheel, Series 51, 80 CC, Complete, Incl 2 - 20

1шт.

1

BN325931R

REMAN-HYD MOTOR

Wheel, Series 51, 80 CC, Complete, Incl 2 - 20

1шт.

1

BN325931C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

87270307

O-RING

Valve Bushing

2шт.

3

BN446048

PLUG

9/16" - 18 ORB

2шт.

4

BN98019

O-RING

SAE - 6 Buna

2шт.

5

BN322139

CHECK VALVE

Charge Relief Kit

1шт.

6

87270308

GUIDE

Spring Assembly

2шт.

7

87270309

PISTON

Wheel Motor

1шт.

8

87270310

CONTROL VALVE

Assembly

1шт.

9

87270311

SEAL

Gasket

1шт.

10

87270312

O-RING

Piston Mounting Flange

2шт.

2 Used on Wheel Motor SN N-06-12- XXXX and Before, 1 Used on Wheel Motor SN N-06-13-XXXX and After

1шт.

11

84298492

SEAL

Wheel Motor Shaft Seal

1шт.

Used on Wheel Motor SN N-06-13-XXXX and After

1шт.

12

BN65547

SEAL

Lip Seal, Wheel Motor Shaft

1шт.

Used on Wheel Motor SN N-06-12- XXXX and Before, Not Used on Wheel Motor SN N-06-13-XXXX and After

1шт.

13

87270306

VALVE BODY

Bushing Assembly

1шт.

14

9625178

PLUG,9/16" - 18 ORB

Incl 15

4шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

16

86632547

PLUG,Hex, 5/16"-24 ORB

Incl 17

3шт.

17

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

3шт.

18

9841223

PLUG,1-1/16" - 12 ORB

Incl 19

1шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

14461581

O-RING

Piston Mounting Flange

1шт.

Used on Wheel Motor SN N-06-12- XXXX and Before, Not Used on Wheel Motor SN N-06-13-XXXX and After

1шт.
