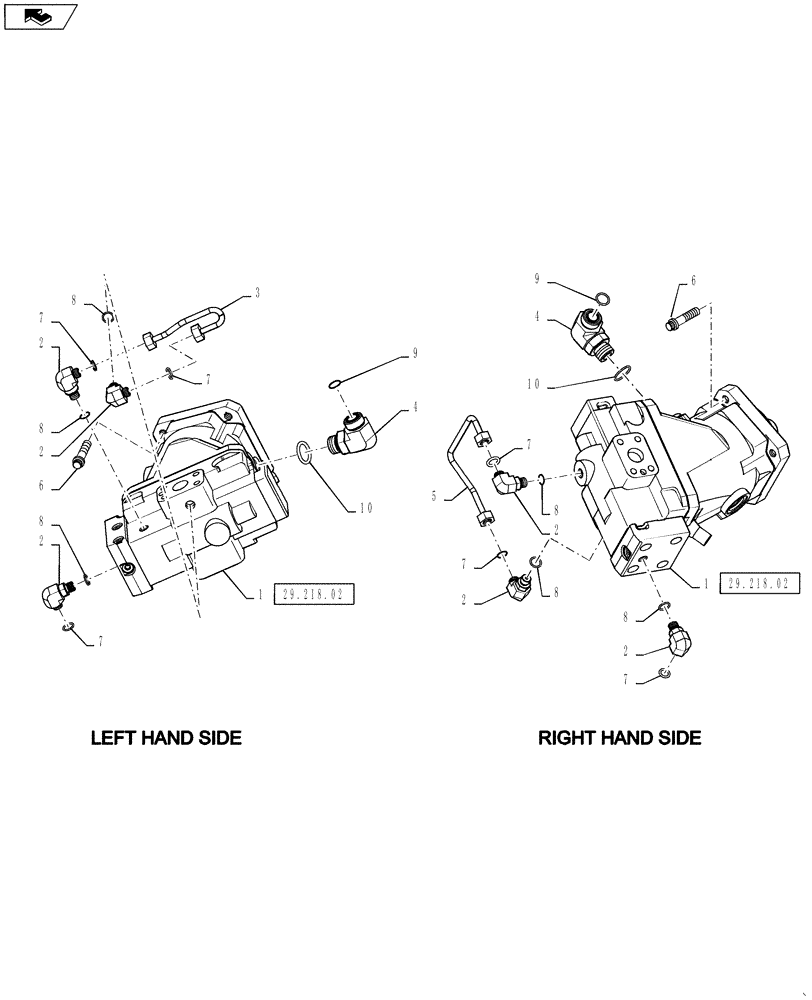

Запчасти Case IH 4430 (29.218.01) - WHEEL MOTOR GROUP (29) - HYDROSTATIC DRIVE

1

BN325931

HYDRAULIC MOTOR

Wheel Motor, Series 51, 80 CC

4шт.

See Fig 29.218.02 For Service Parts Breakdown

1шт.

BN325931R

REMAN-HYD MOTOR

4430 PATRIOT SPRAYER TIER 4, Wheel Motor, Series 51, 80 CC (9/11-)

4шт.

BN325931C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB

12шт.

3

BN320668

TUBE

LH Wheel Motor Hydraulic Hose Jumper From M1 To M2

2шт.

4

BN302568

ELBOW

1-3/16"-12 ORFS x 1-1/16"-12 ORB

4шт.

5

BN320669

TUBE

RH Wheel Motor Hydraulic Hose Jumper From M2 To M5

2шт.

6

87013798

12 PT SCREW,Flg, M12 x 50mm, Cl 12.9

16шт.

7

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

12шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

12шт.

9

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

4шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

4шт.
