Запчасти Case IH 4430 (29.212.01) - HYDROSTATIC PUMP GROUP (29) - HYDROSTATIC DRIVE

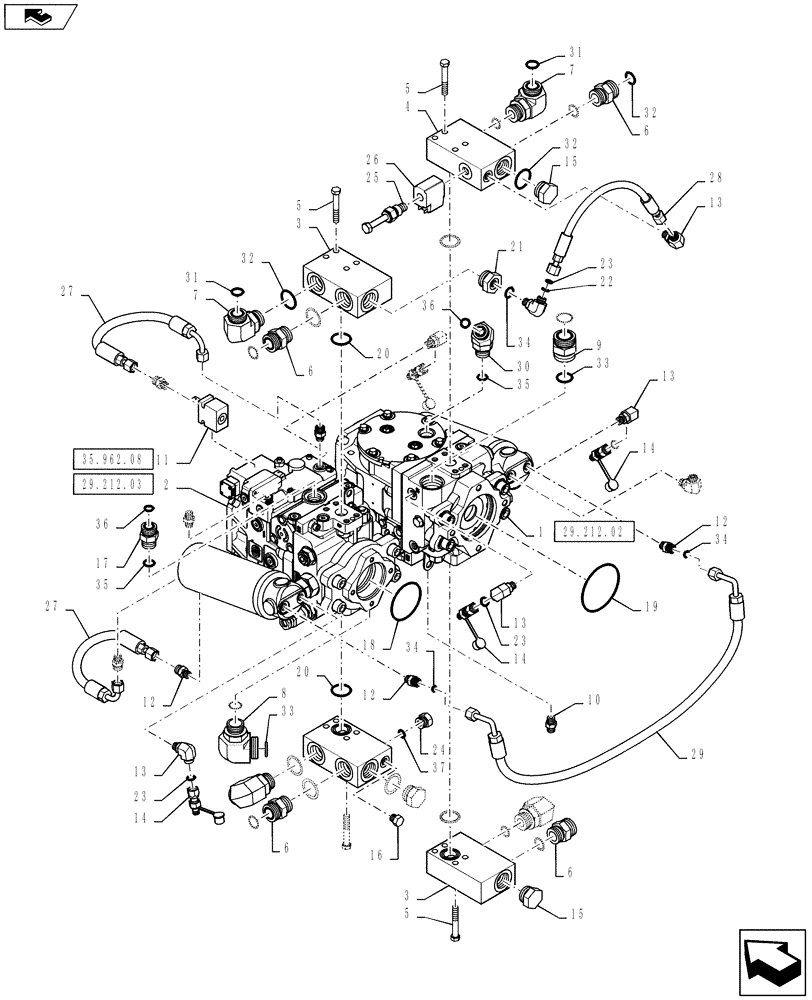

Схема запчастей Case IH 4430 - (29.212.01) - HYDROSTATIC PUMP GROUP (29) - HYDROSTATIC DRIVE
35
29
6
33
1
6
7
11
12
32
35
31
35.962.08
12
29.212.03
23
27
20
13
23
33
13
34
27
18
3
10
6
37
34
24
21
25
36
13
2
31
6
20
36
4
28
22
home
19
5
14
15
23
13
30
16
34
3
9
15
5
17
26
14
8
32
29.212.02
7
14
12
32
5

Артикул

Название

Примечание

Количество

1

84408213

HYDROSTATIC PUMP

RH, 90 Series, With 13 Tooth Coupler For Rear Mounted Pump

1шт.

See Fig 29.212.02 For Service Parts Breakdown

1шт.

84408213R

REMAN-HYD PUMP

4430 90 Series TIER 4 (9/11-)

1шт.

84408213C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

84408212

HYDROSTATIC PUMP

LH, 90 Series, With 11 Tooth Coupler For Rear Mounted Pump

1шт.

See Fig 29.212.03 For Service Parts Breakdown

1шт.

84408212R

REMAN-HYD PUMP

4430 90 Series TIER 4 (9/11-)

1шт.

84408212C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

87544315

MANIFOLD

Control Block, Without Cavity

2шт.

4

87544316

MANIFOLD

Control Block, With Cavity

2шт.

5

87342892

BOLT

7/16"-14 x 2 3/4, G5

16шт.

6

BN57223

FITTING

1-7/16" -12 ORFS x 1-5/16" -12 ORB

4шт.

7

BN302574

ELBOW

1-7/16" -12 ORFS x 1-5/16" -12 ORB

4шт.

8

BN302576

ELBOW

1-11/16" -12 ORFS x 1-5/16" -12 ORB

1шт.

9

BN302659

FITTING

1-11/16" -12 ORFS x 1-5/16" -12 ORB

1шт.

10

BN313038

FITTING

9/16" -18 ORB x 9/16" -18 ORB

2шт.

11

87544312

VALVE

Shunt

2шт.

See Fig 35.962.08 For Service Parts Breakdown

1шт.

12

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

8шт.

13

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

8шт.

14

BN307993

NIPPLE, LUBE

NIPPLE Diagnostic, 11/16-16 ORFS

5шт.

15

BN60479

PLUG

1-5/16" -12 ORB

3шт.

16

BN446048

PLUG

9/16" -18 ORB

1шт.

17

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

18

14461081

O-RING,3.237" ID x 0.103" Width

Mounting Seal Between Gear Pump And LH Hydrostat

1шт.

19

87487840

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

Mounting Seal Between Pressure Compensated Pump And RH Hydrostat

1шт.

20

BN52317

O-RING

Split Flange

4шт.

21

87271986

PLUG

1-5/16" -12 ORB x 9/16" -18 ORB

1шт.

22

87265840

ORIFICE

.075 - 6 Disc

1шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

21шт.

24

BN21243

PLUG

7/8" -14 ORB

1шт.

25

BN300304

SOLENOID VALVE

Traction

1шт.

26

87267935

COIL

12V, DC

1шт.

27

87560255

HOSE

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel Medium Elbow x 3/8" ID x 15" Long, Shunt

2шт.

28

84208158

HYDRAULIC HOSE,6.35mm ID x 432mm L, SAE 100R16

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel x 1/4" ID x 17" Long

1шт.

29

87552875

HOSE

11/16-16 ORFS Swivel 45 Degree Elbow x 11/16-16 ORFS Swivel 45 Degree Elbow x 3/8" ID x 30" Long

1шт.

30

BN302639

ELBOW

1-3/16" -12 ORFS x 1-1/16" -12 ORB

1шт.

31

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

8шт.

32

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

12шт.

33

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1-11/16", ORFS

2шт.

34

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

21шт.

35

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

2шт.

36

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

2шт.

37

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

1шт.

Выбрано товаров: 44
