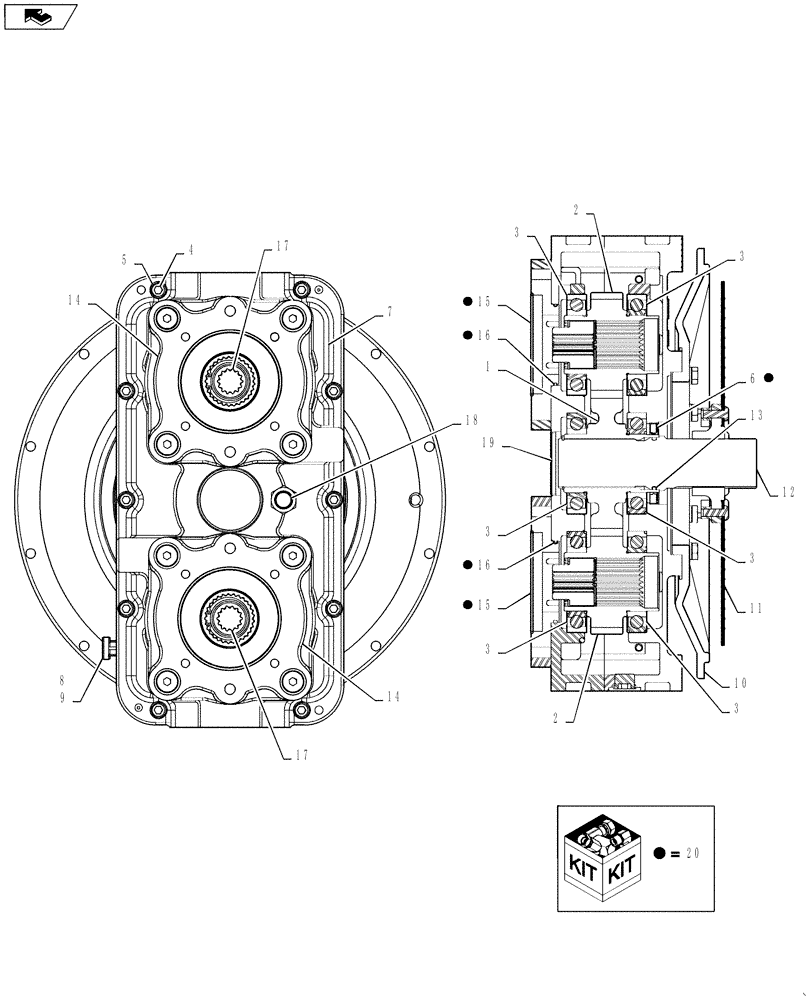

Запчасти Case IH 4430 (29.202.02) - HYDROSTATIC PUMP DRIVE GEARBOX BREAKDOWN (29) - HYDROSTATIC DRIVE

0

84279492

DRIVE

Gearbox, 1.40

1шт.

1

84141288

GEAR

Spur, 42T

1шт.

2

84141289

GEAR

Spur, 30T

2шт.

3

84145358

BALL BEARING,75mm ID x 130mm OD x 25mm W

75mm X 130mm X 25mm

6шт.

4

82072

HEX SOC SCREW,1/2" - 13 x 1 1/2"

10шт.

5

87326976

LOCK WASHER

1/2", PLN

10шт.

6

84145401

SEAL,74.63mm ID x 104.78mm OD x 9.53mm Thk

Shaft, 2.938" X 4.125" X .375", Double Lip, Viton

1шт.

7

84141296

DRAIN PLUG

1-1/16-12, Hex Socket Head, Magnetic, Includes Oring

1шт.

8

84141297

DRAIN PLUG

1-1/16-12, Hex Head, Vented

1шт.

9

84145402

FITTING

Breather Assembly

1шт.

10

84294353

ADAPTER

Engine Bell Housing

1шт.

11

84294354

DRIVE PLATE

Flywheel Adapter

1шт.

12

87272931

SHAFT

Drive, 29T

1шт.

103-11250

SNAP RING,#250, Ext

For Ref 12, Not Shown

1шт.

13

70933480

O-RING,0.139" Thk x 2.359" ID, -229, Cl 7, 75 Duro

Drive Shaft

1шт.

14

87272929

PAD

Hydrostat Mounting, SAE C, Includes Ref , and 4 Mounting Bolts

2шт.

15

70934882

O-RING,0.103" Thk x 4.737" ID, -158, Cl 7, 75 Duro

4-3/4" ID x 3/32" Thick, Class 7

2шт.

16

87564747

O-RING,3.859" ID x 4.137" OD x 0.139"

3-7/8" ID x 1/8" Thick, Class 7

2шт.

17

87272930

SPLINE

Adapter, 14T x 29T, SAE C

2шт.

18

84141299

GAUGE

Sight Glass, 3/4" - 14

1шт.

19

84368027

EXPANSION PLUG

1шт.

20

87565601

SEAL KIT

Includes Ref 6, 15, and 16

1шт.
