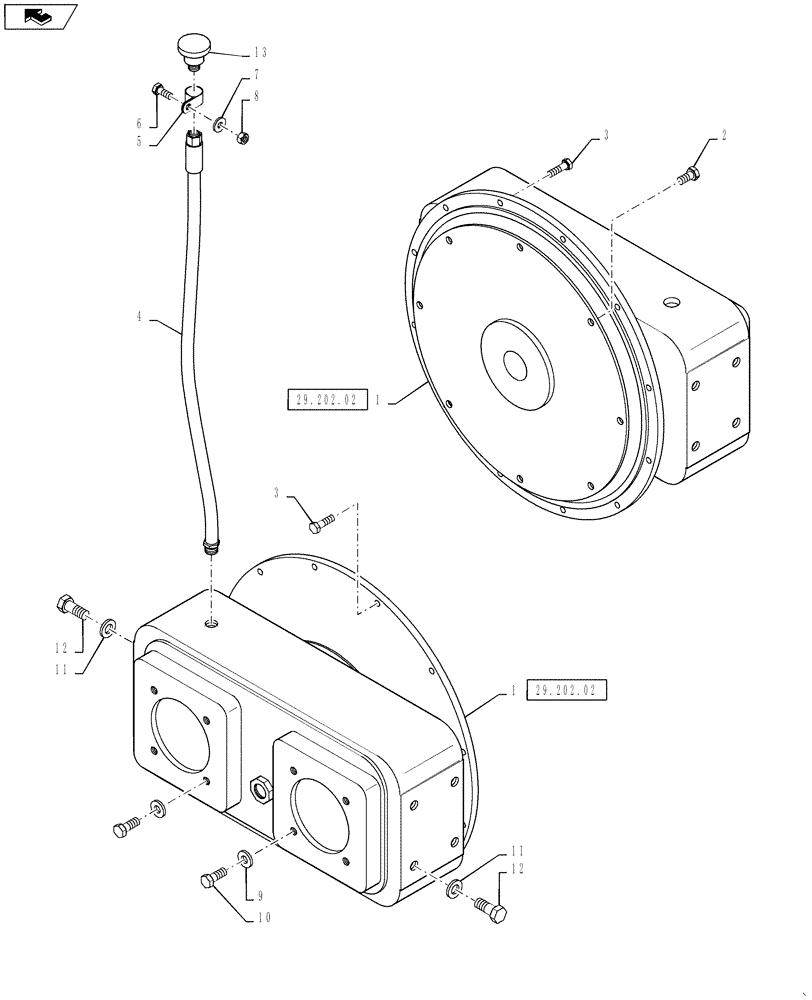

Запчасти Case IH 4430 (29.202.01) - HYDROSTATIC DRIVE GEARBOX (29) - HYDROSTATIC DRIVE

1

84279492

DRIVE

Gearbox, 1.40

1шт.

See Fig 29.202.02 For Service Parts Breakdown

1шт.

2

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

8шт.

3

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

12шт.

4

87592184

HOSE

-8 x 762mm

1шт.

5

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

6

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

9

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

8шт.

10

87342927

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2"-13 x 1-1/4, G8

8шт.

11

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

8шт.

12

87605320

BOLT

Hex, 5/8"-11 x 1 1/2", G5

8шт.

13

84145402

FITTING

Breather

1шт.
