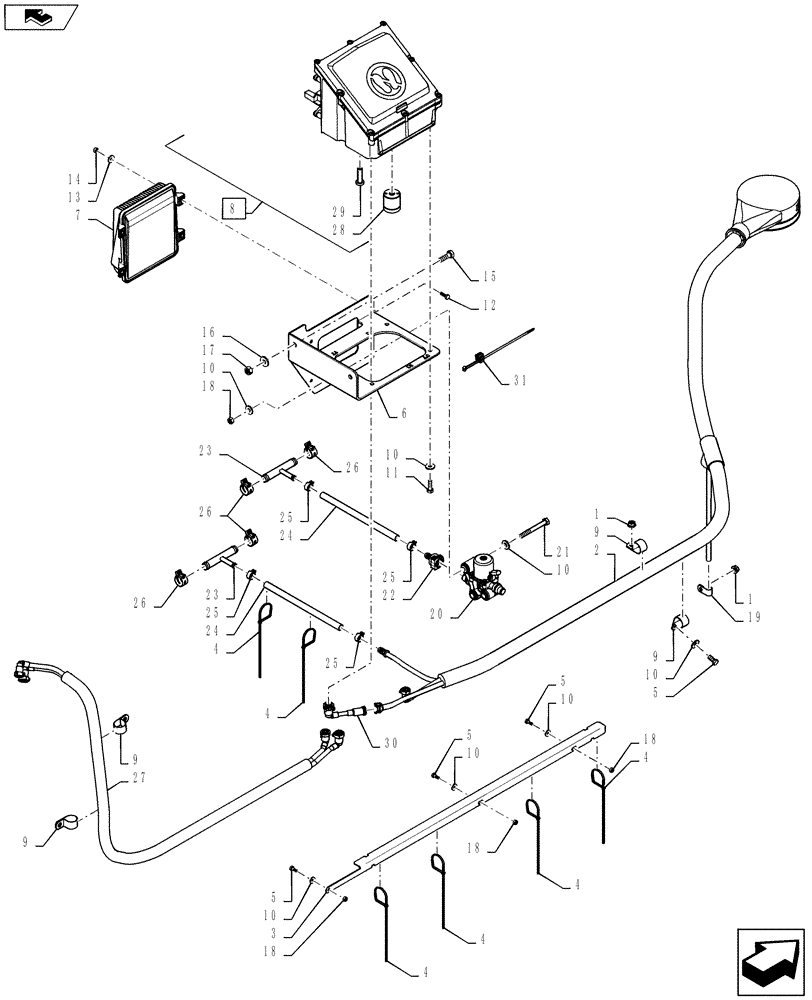

Запчасти Case IH 4430 (10.500.03[02]) - DEF LINES, SN YCT033001 AND AFTER (10) - ENGINE

1

87344227

SERRATED NUT

Serrated, M8 SPL DOR

2шт.

2

84466557

HOSE ASSY.

Urea, Heated Def, Serial Range: Tank-Module

1шт.

3

84390017

MOUNT

DEF Lines

1шт.

4

87557084

CABLE TIE,14"

CABLE STRAP 14" Tie

6шт.

5

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

84467143

MOUNT

Supply Module

1шт.

7

84383005

CONVERTER,12V To 24V

DC/DC, 12V - 24V

1шт.

8

84246892

MODULE

Urea Supply Module, INCL Ref 28 - 29

1шт.

8

84246892R

REMAN-MODULE

Urea Supply Module

1шт.

8

84246892C

CORE-MODULE

Return Number

1шт.

9

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

Double

4шт.

10

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

14шт.

11

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

12

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

13

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

4шт.

14

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

15

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

17

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

18

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

19

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

20

84151635

HEATER VALVE

DEF

1шт.

21

86980387

BOLT,Hex, M8 x 70mm, Cl 8.8

M8 - 1.25 x 70mm, 8.8, DOR

3шт.

22

84182161

FITTING

Special Fitting to Hose Barb

1шт.

23

84381516

TEE

DEF Heater

2шт.

24

84361217

HOSE

9.52mm ID x 685mm Long

2шт.

25

1348264C1

HOSE CLAMP

3/8" ID

4шт.

26

1954736C1

HOSE CLAMP,#24

4шт.

27

84485214

HOSE ASSY.

Urea, Heated Def, Module To DEF Injector

1шт.

28

84254852

FILTER

Filter Element

1шт.

29

84247272

FILTER,In-Line

Urea, Inlet

1шт.

30

84263625

HOSE ASSY.

In Line Supply Filter

1шт.

31

47446365

FASTENER

Edge Clip, 1-3 MM

1шт.
