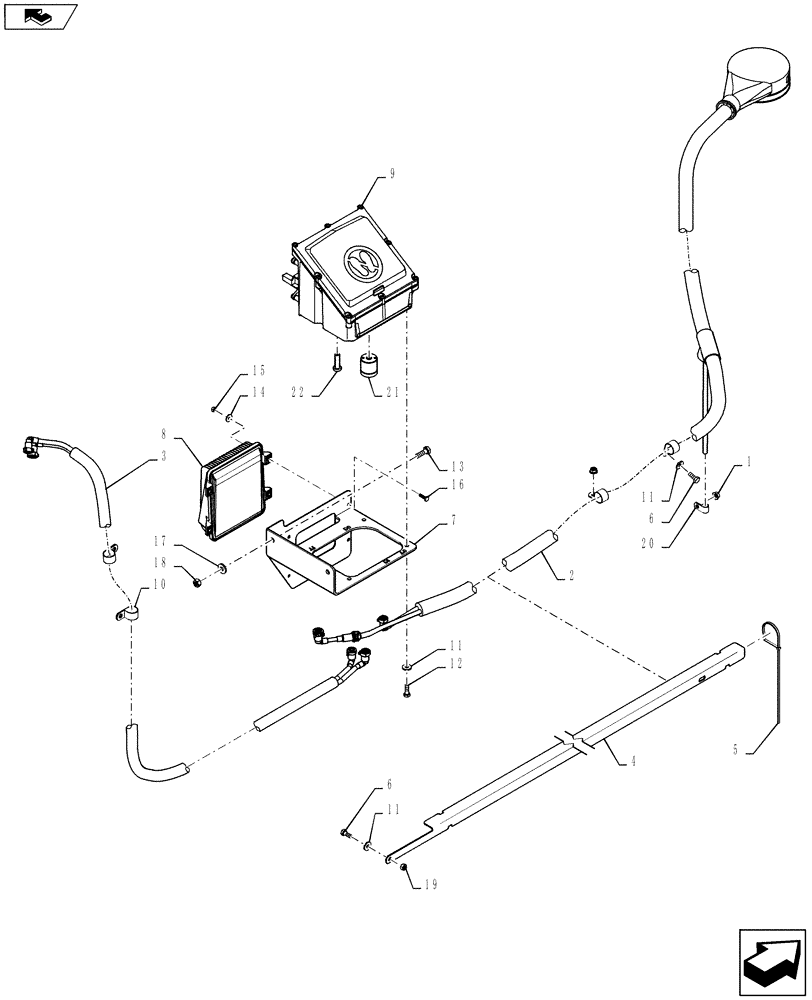

Запчасти Case IH 4430 (10.500.03[01]) - DEF LINES, BSN YCT033001 (10) - ENGINE

1

87344227

SERRATED NUT

Serrated, M8 SPL DOR

2шт.

2

84388503

HOSE ASSY.

Urea, Supply, Serial Range: Tank-Module

1шт.

3

84388505

HOSE ASSY.

Urea, Inject, Module to Dosing Module

1шт.

4

84390017

MOUNT

DEF Lines

1шт.

5

87557084

CABLE TIE,14"

CABLE STRAP 14" Tie

4шт.

6

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

84384423

MOUNT

Supply Module

1шт.

8

84383005

CONVERTER,12V To 24V

DC/DC, 12V - 24V

1шт.

9

84246892

MODULE

Urea Supply Module, Includes Ref 21 and 22

1шт.

9

84246892R

REMAN-MODULE

Reman, Urea Supply Module, Includes Ref 21 and 22

1шт.

9

84246892C

CORE-MODULE

Return Number

1шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

Double

4шт.

11

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

12

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

13

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

14

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

4шт.

15

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

16

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

17

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

18

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

19

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

20

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

21

84254852

FILTER

Filter Element

1шт.

22

84247272

FILTER,In-Line

Inlet, Urea

1шт.
