(10.500.02[02]) - DEF TANK ASSEMBLY, SN YCT033001 AND AFTER

Запчасти Case IH 4430 (10.500.02[02]) - DEF TANK ASSEMBLY, SN YCT033001 AND AFTER (10) - ENGINE

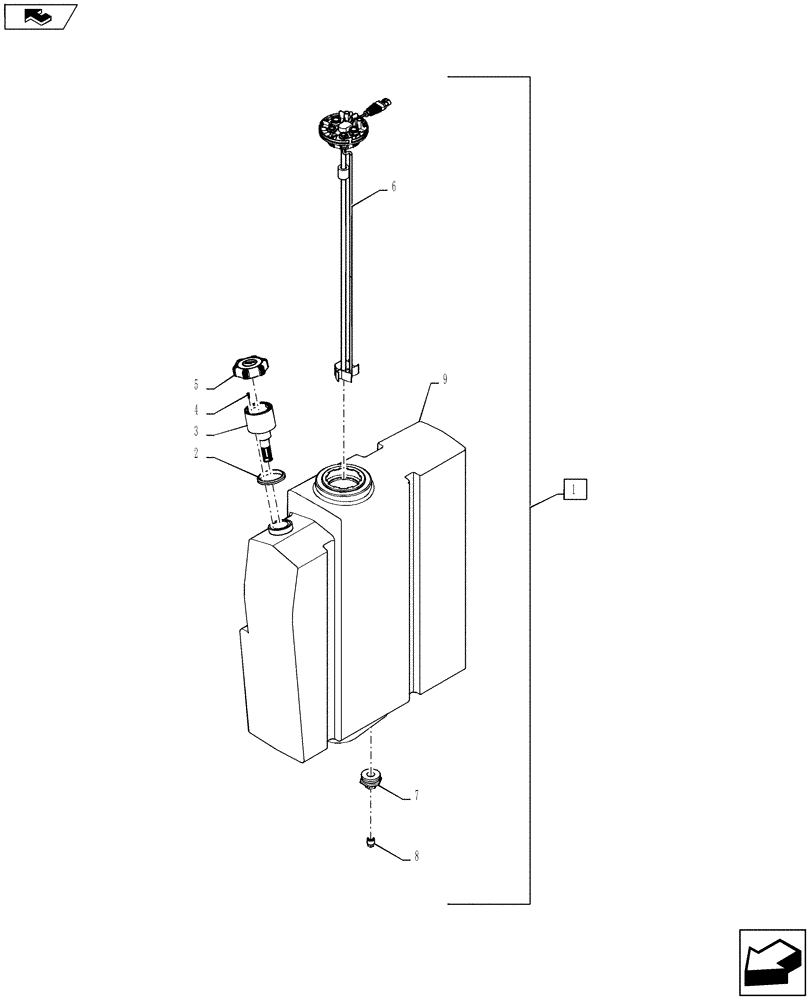

Схема запчастей Case IH 4430 - (10.500.02[02]) - DEF TANK ASSEMBLY, SN YCT033001 AND AFTER (10) - ENGINE
3
home
7
1
2
6
5
8
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84479775

EXHAUST FLUID TANK

DEF Tank Assembly, INCL Ref 2 - 9

1шт.

2

84186232

RING

Filler Neck Urea Tank

1шт.

3

87483158

NECK FILLER

Urea Tank, Includes Ref 2

1шт.

4

84246766

HEX SOC SCREW,M4 x 12mm, SST

M4 x 12mm Full Thread SST

4шт.

5

84206552

FILLER CAP,Male

Non Lockable

1шт.

6

84196843

METER

Fuel Level Sender

1шт.

7

84365214

FITTING,1/2"SS Bulkhead Tank Fitting

Bulkhead Drain Fitting

1шт.

8

BN313209

PLUG

Drain Plug, 1/2" NPT

1шт.

9

NSS

NOT SOLD SEPARAT

DEF Tank

1шт.
