(10.500.02[01]) - DEF TANK ASSEMBLY, BSN YCT033001

Запчасти Case IH 4430 (10.500.02[01]) - DEF TANK ASSEMBLY, BSN YCT033001 (10) - ENGINE

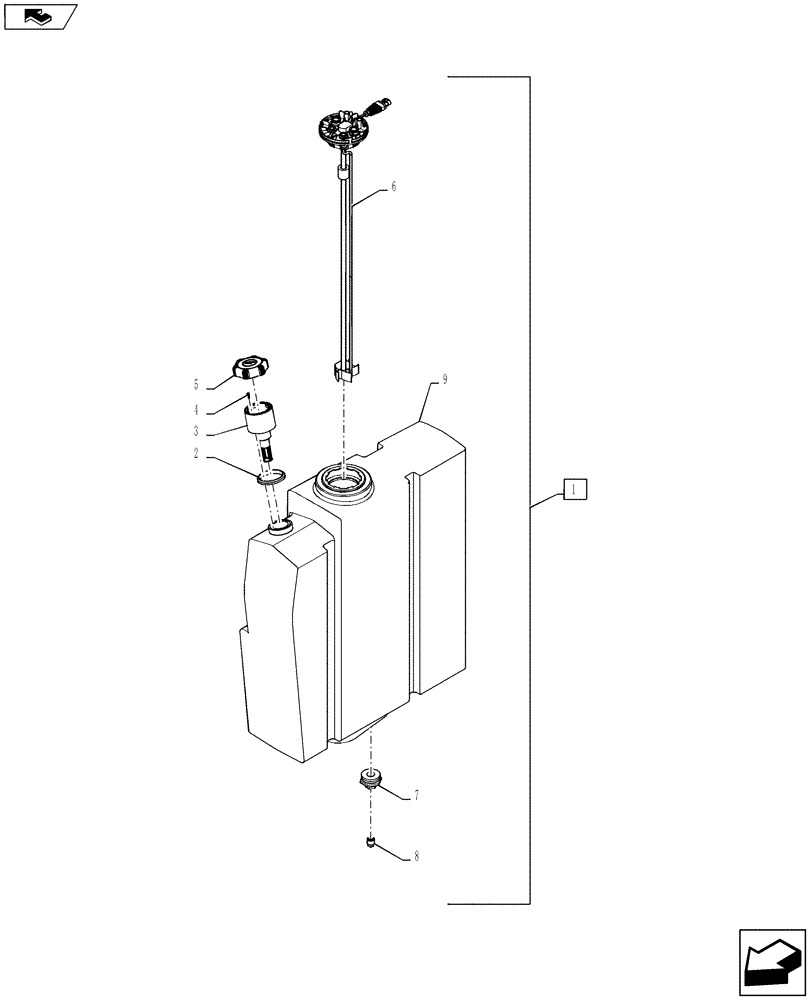

Схема запчастей Case IH 4430 - (10.500.02[01]) - DEF TANK ASSEMBLY, BSN YCT033001 (10) - ENGINE
2
1
4
3
7
9
5
6
home
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84274510

TANK

DEF Tank Assembly, Includes Ref 2 - 9

1шт.

2

84186232

RING

Filler Neck Urea Tank

1шт.

3

87483158

NECK FILLER

Urea Tank, Includes Ref 2

1шт.

4

84246766

HEX SOC SCREW,M4 x 12mm, SST

M4 x 12mm Full Thread SST

4шт.

5

84206552

FILLER CAP,Male

Non Lockable

1шт.

6

84196841

SENDER UNIT

DEF Level Sender

1шт.

*

47681396

GASKET

For Ref 6, Not Shown

1шт.

7

84365214

FITTING,1/2"SS Bulkhead Tank Fitting

Bulkhead Drain Fitting

1шт.

8

BN313209

PLUG

Drain Plug, 1/2" NPT

1шт.

9

NSS

NOT SOLD SEPARAT

DEF Tank

1шт.
