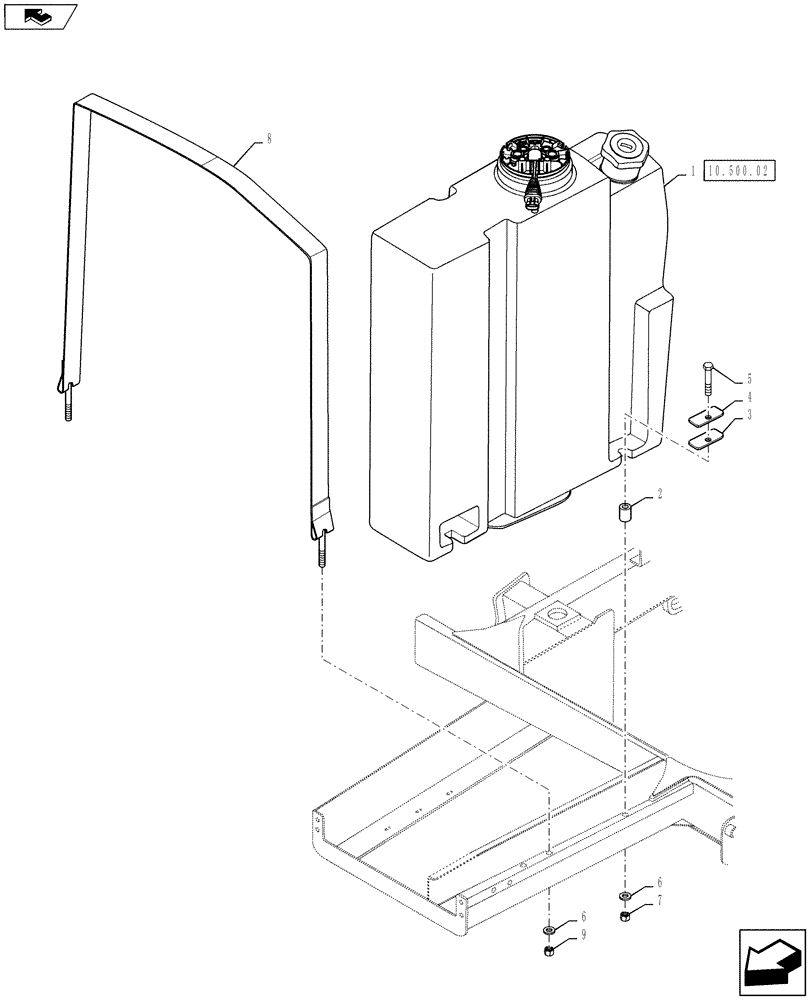

Запчасти Case IH 4430 (10.500.01[01]) - DEF TANK MOUNTING, BSN YCT033001 (10) - ENGINE

1

84274510

TANK

DEF Tank Assembly

1шт.

See Fig 10.500.02 for Service Parts Breakdown

1шт.

2

BN67653

BUSHING

2шт.

3

84237916

RUBBER MOUNTING

Adhesive Back

2шт.

4

BN67652

PLATE

Tank Hold Down

2шт.

5

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

7

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

8

84316403

STRAP

Tank Hold Down

1шт.

9

BN300407

FLANGE NUT

Flg, 1/2"-13, G8

2шт.
