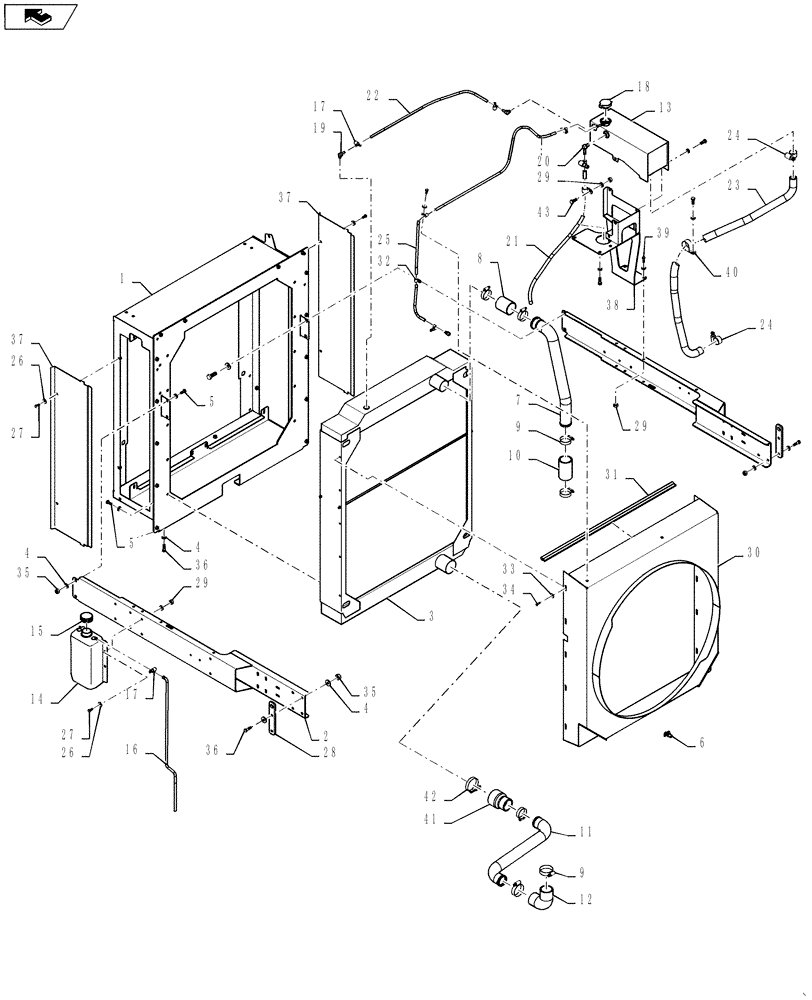

Запчасти Case IH 4430 (10.408.04) - COOLING SYSTEM (10) - ENGINE

1

84474274

MOUNT

Cooler

1шт.

2

84250746

SUPPORT

Tank Rail

2шт.

3

87266225

RADIATOR

778D, 6.5 FPI

1шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

30шт.

5

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

DOR

14шт.

6

217-92

COCK

Drain

1шт.

7

84281939

TUBE

Upper Radiator

1шт.

8

87539189

FLEXIBLE HOSE,62.00 mm ID x 80.00 mm

Cooler

1шт.

9

87750942

HOSE CLAMP

2-5/16" To 3"

7шт.

10

BN324394

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE J20, SAE 20R4

Straight Coupling

1шт.

11

84281938

TUBE

Lower Radiator

1шт.

12

BN324392

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE 20R4 Class D1 per SAE J20

Lower

1шт.

13

84283136

TANK

Dearation

1шт.

14

87481454

BOTTLE

Recovery, 5 Quart

1шт.

15

86507190

CAP

Coolant Recovery

1шт.

16

84545873

FUEL HOSE

5/16" X 48" Hose

1шт.

17

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

18

A170241

RADIATOR CAP

103 KPA

1шт.

19

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

Elbow

2шт.

20

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

21

84514630

HOSE

Engine To Dearation

1шт.

22

BN314262

HOSE,0.31" ID x 36.00"

Dearation To Radiator

1шт.

23

84286174

HOSE

Dearation To Engine

1шт.

24

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

25

87270503

HOSE,7.87mm ID x 1828.8mm L

Dearation To CRB

1шт.

26

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

25шт.

27

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

15шт.

28

343219A1

LUG

Lifting

2шт.

29

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

7шт.

30

84360253

SHROUD

Fan

1шт.

31

84283473

SEAL

Baffle

2шт.

32

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

ZND

4шт.

33

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

10шт.

34

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

10шт.

35

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

36

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

37

84474249

ACCESS COVER

Cooler

2шт.

38

84371640

MOUNT

Dearation

1шт.

39

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

40

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

41

84325964

RADIATOR HOSE

Lower

1шт.

42

L115549

CLAMP,69.85mm - 92.08mm

Hose

1шт.

43

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

44

BN570007

STRAP

Black Zip-Tie ( Not Shown )

1шт.
