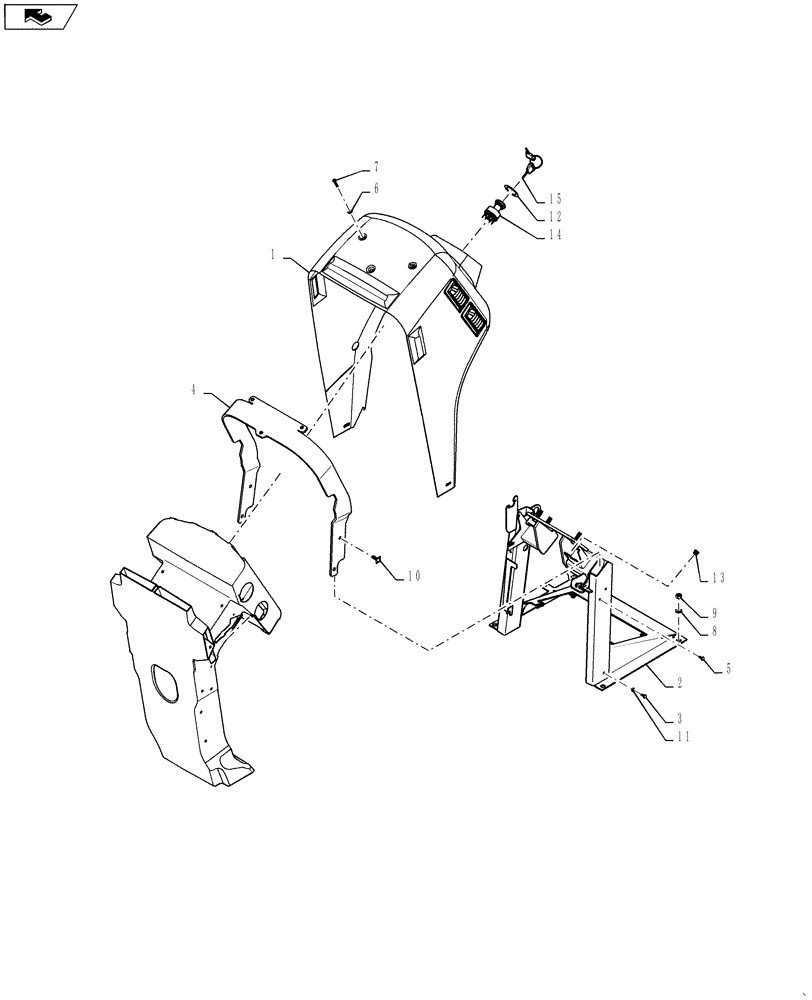

Запчасти Case IH 4430 (90.160.01) - FRONT CONSOLE ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

360446A1

CONSOLE

Front

1шт.

2

281425A5

SUPPORT

Steering

1шт.

3

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

2шт.

4

280566A1

SUPPORT

Front Console

1шт.

5

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

4шт.

6

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

3шт.

7

436276A1

SCREW,BHD, M6 x 1 x 30mm, Class 10.9

Button Head

3шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

829-1310

NUT,M10, Cl 10

4шт.

10

301098A1

CLIP

Snap-In

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

353849A1

DECAL

Key Switch

1шт.

13

A67295

PLUG

Control Cable

1шт.

14

363914A1

IGNITION SWITCH

W/ Padded Keys

1шт.

Includes Ref. 15

1шт.

15

86502201

IGNITION KEY

1шт.
