(90.150.04) - CAB MOUNTING

Запчасти Case IH 4430 (90.150.04) - CAB MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

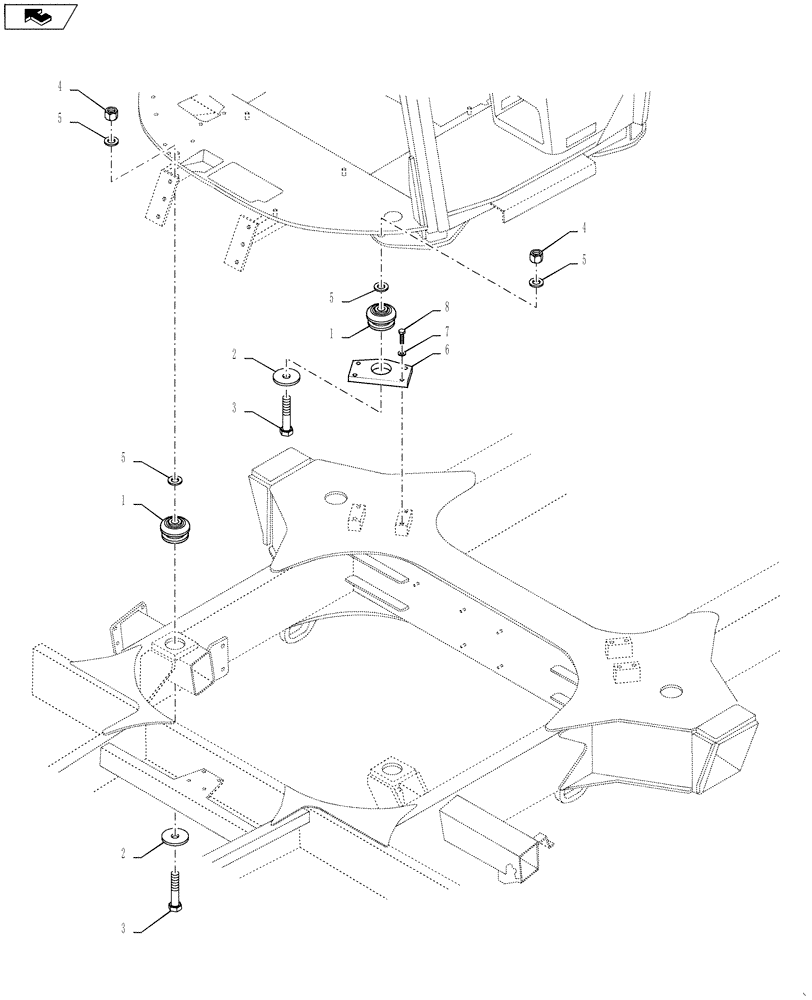

Схема запчастей Case IH 4430 - (90.150.04) - CAB MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
5
6
5
2
4
3
1
2
4
home
5
8
5
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

377678A1

RUBBER MOUNTING

Cab Isolator Mount

4шт.

2

371043A1

WASHER

Steel Snubber

4шт.

3

87342028

BOLT,M24 x 120, 10.9, DOR

4шт.

4

832-10424

NUT,M24 x 3, Cl 8

ZND

4шт.

5

87529311

WASHER,26mm ID x 44mm OD x 5mm Thk

26 x 44 x 5 mm, HDN, DOR

8шт.

6

BN323368

BRACKET

Cab Mount

2шт.

7

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

DOR

8шт.

8

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

DOR

8шт.

Выбрано товаров: 8
