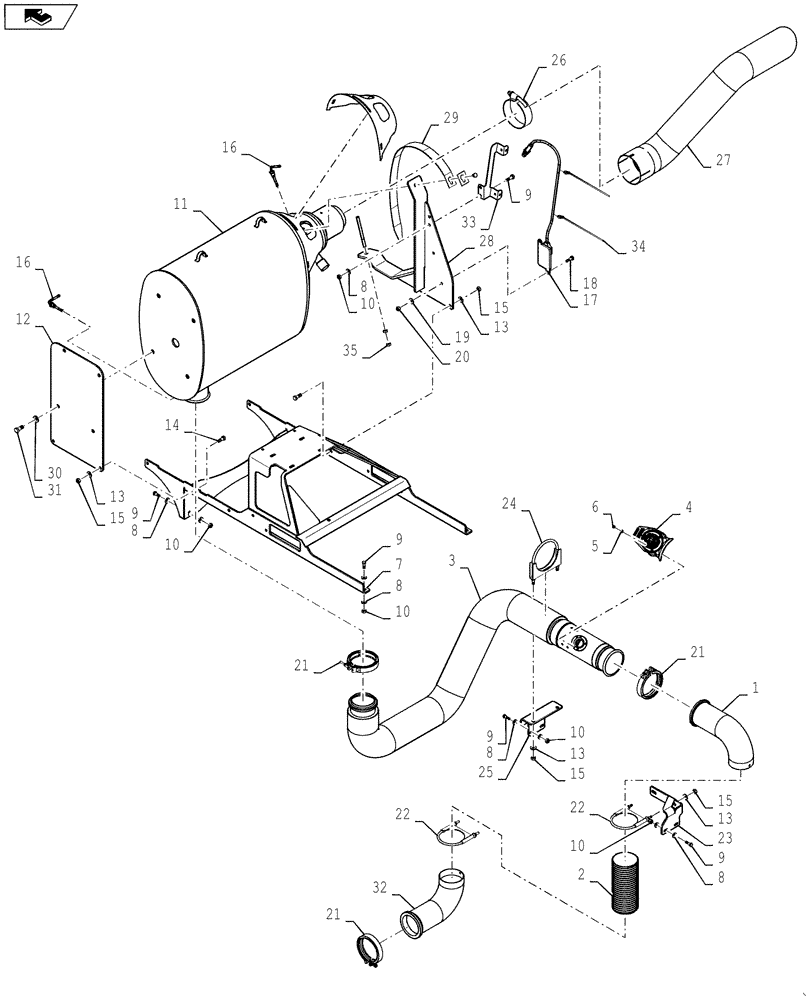

Запчасти Case IH 4430 (10.254.02) - EXHAUST GROUP (10) - ENGINE

1

84249973

EXHAUST SYSTEM PIPE

Turbo

1шт.

2

84270351

EXHAUST SYSTEM PIPE

Flex

1шт.

3

84288745

EXHAUST SYSTEM PIPE

Weldment

1шт.

4

84247021

MODULE,Dosing Injector

Urea Dosing Injector

1шт.

5

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

3шт.

6

84233542

HEX SOC SCREW

M6 x 40 Class 12.9

3шт.

7

84286016

MOUNT

SCR and Filter

1шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

22шт.

9

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

12шт.

11

84288725

MUFFLER

SCR, 24L

1шт.

12

84297624

MOUNT

SCR

1шт.

13

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

14

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

9шт.

16

47478880

TEMPERATURE SENDER,50mm, Closed

Exhaust

2шт.

17

84422745

SENSOR

NOX

1шт.

18

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

19

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

20

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

21

87487061

CLAMP,116.9mm - 118.2mm

Exhaust

3шт.

22

BN25927

CLAMP,104.8mm ID

Exhaust

2шт.

23

84272698

MOUNT

Exhaust

1шт.

24

BN306386

CLAMP,129.5mm ID

Muffler, 5"

1шт.

25

84362555

MOUNT

Exhaust Tube

1шт.

26

BN313592

CLAMP

Bent Bolt, 5"

1шт.

27

84530512

EXHAUST SYSTEM PIPE

Exhaust Outlet

1шт.

28

84297864

MOUNT

SCR

1шт.

29

84288838

STRAP

SCR Canister Support

1шт.

30

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

31

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

32

84403348

EXHAUST SYSTEM PIPE

Turbo

1шт.

33

84422507

MOUNT

Sensor Cable

1шт.

34

BN570007

STRAP

Black, 14-1/2" Long

2шт.

35

87344209

NUT,M10 x 1.5, Cl 10, DOR

2шт.
