Запчасти Case IH 4430 (90.150.02) - CAB ROOF AND LIGHTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

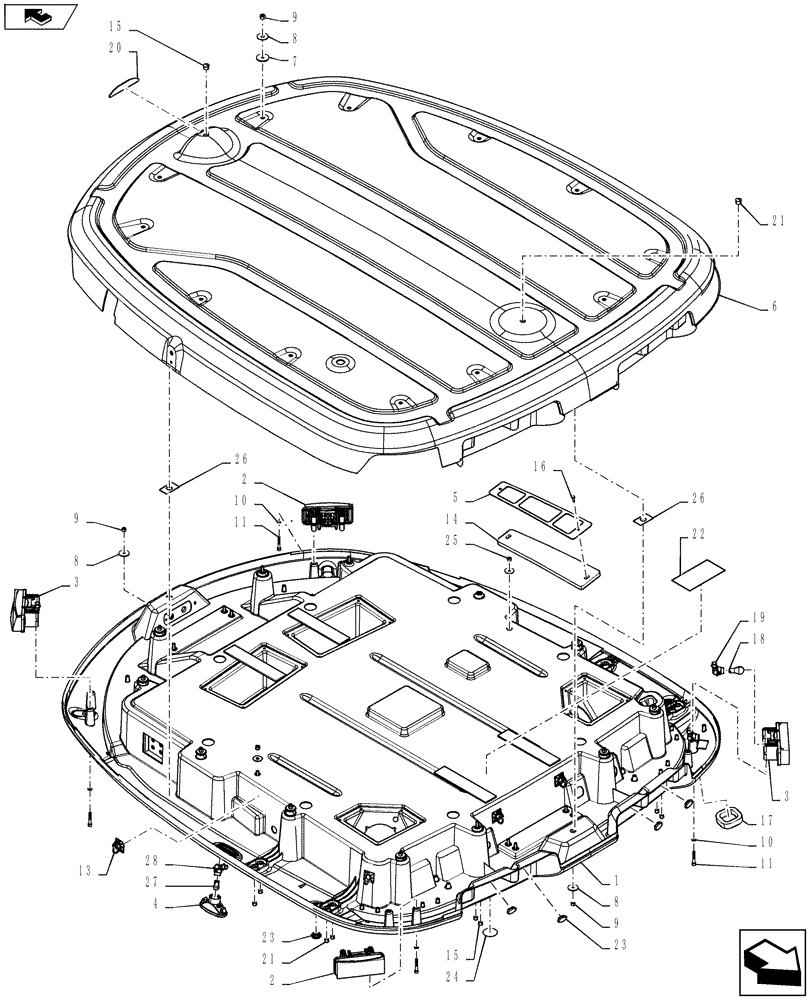

Схема запчастей Case IH 4430 - (90.150.02) - CAB ROOF AND LIGHTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
8
28
16
8
26
9
4
10
22
24
10
26
1
23
8
5
20
14
17
15
27
2
9
18
21
13
3
19
9
2
3
20
25
21
11
6
7
11
23
15

Артикул

Название

Примечание

Количество

1

84405986

ROOF

Lower Assembly

1шт.

2

87301973

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

RH SAE SMV

2шт.

3

87301972

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

LH SAE SMV

2шт.

4

87301963

CEILING LAMP,12V

Puddle

1шт.

5

84303099

COVER PLATE

HVAC Filter Plate

1шт.

6

84390781

ROOF

Upper Assembly

1шт.

7

221429A2

SPACER

Door Handle

12шт.

8

495-81140

WASHER,13/32" x 1 1/4" x .060"

CST ZND

16шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

ZND

14шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6.6 x 12 x 1.6MM CST ZND

8шт.

11

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

ZND

8шт.

12

435436A1

RUBBER MOUNTING

Adhesive Backed

9шт.

13

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

9шт.

14

84211797

AIR FILTER

Cab Air

1шт.

15

353-401

PLUG,Dome, .312" hole, Nylon

Black

9шт.

16

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

ZND

2шт.

17

84211795

GASKET

HVAC Intake Gasket

1шт.

18

529068

BULB,#1156, 12V, 21W

For Ref. 2, & 3, Flasher Lamp

4шт.

19

87304554

HOLDER

Bulb Holder For Ref. 2, & 3, Flasher Lamp

4шт.

20

84257768

COVER

Cover, Used With No Auto Guidance

1шт.

21

353-402

PLUG,Dome, .375" hole, Nylon

Black

9шт.

22

403325A2

FOAM,30mm x 50mm x 250mm

Spacer

8шт.

23

14507787

PLUG,Retaining Lip, 25mm

Trim M25 Style B

6шт.

24

84353524

DECAL

Cover, No FOPS Plate

9шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

ZND

2шт.

26

84402690

FOAM INSULATION

Spacer

2шт.

27

14149590

BULB,12V, 10W

For Ref. 4

1шт.

28

87304554

HOLDER

Bulb Holder For Ref. 4

1шт.

Выбрано товаров: 28
