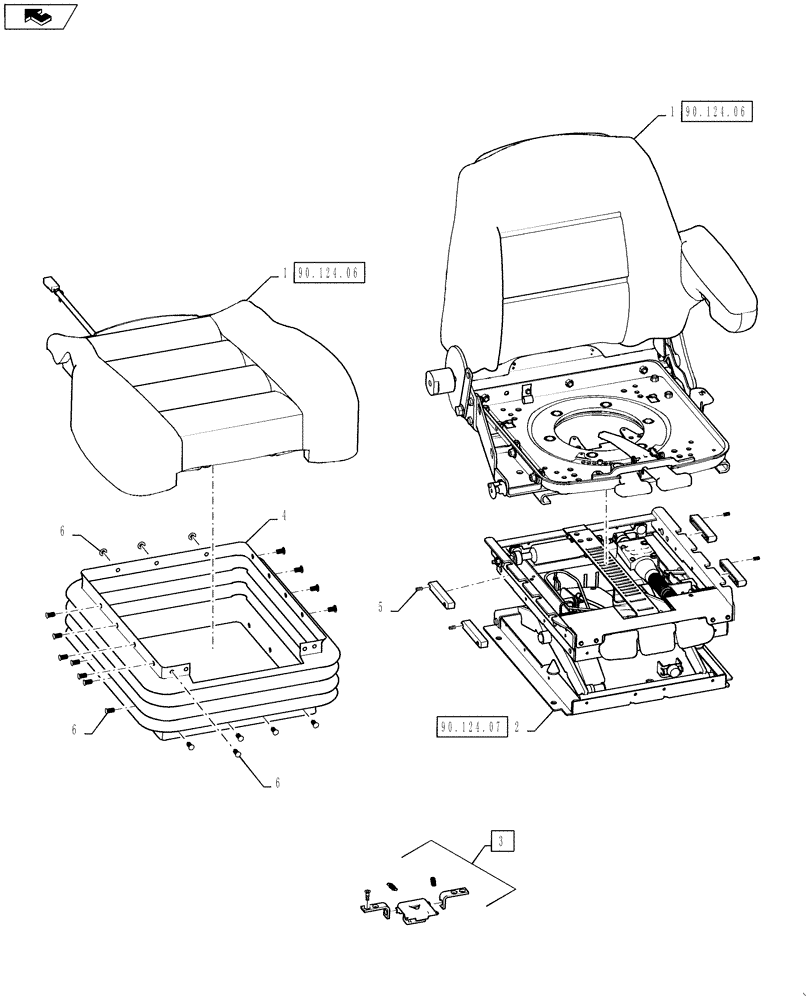

Запчасти Case IH 4430 (90.124.05) - LUXURY LEATHER SEAT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

84162216

SEAT

Complete, Luxury, Leather Seat With Air Suspension And 3 Position Heat

1шт.

1

87486630

SEAT

Assembly, Seat Top, Red Leather

1шт.

See Fig 90.124.06 For Service Parts Breakdown

1шт.

2

84406039

SERVICE KIT

Complete Air Suspension

1шт.

See Fig 90.124.07 For Service Parts Breakdown

1шт.

3

87347934

LATCH

Slide, Kit

1шт.

4

87347943

SERVICE KIT

Seat Boot

1шт.

5

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

6

333659A1

PACKAGE,SERVICE

Boot Button Kit

1шт.
