Запчасти Case IH 4430 (90.120.01[02]) - INSTRUCTIONAL SEAT, DELUXE CLOTH / LUXURY LEATHER, SN YCT032077 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

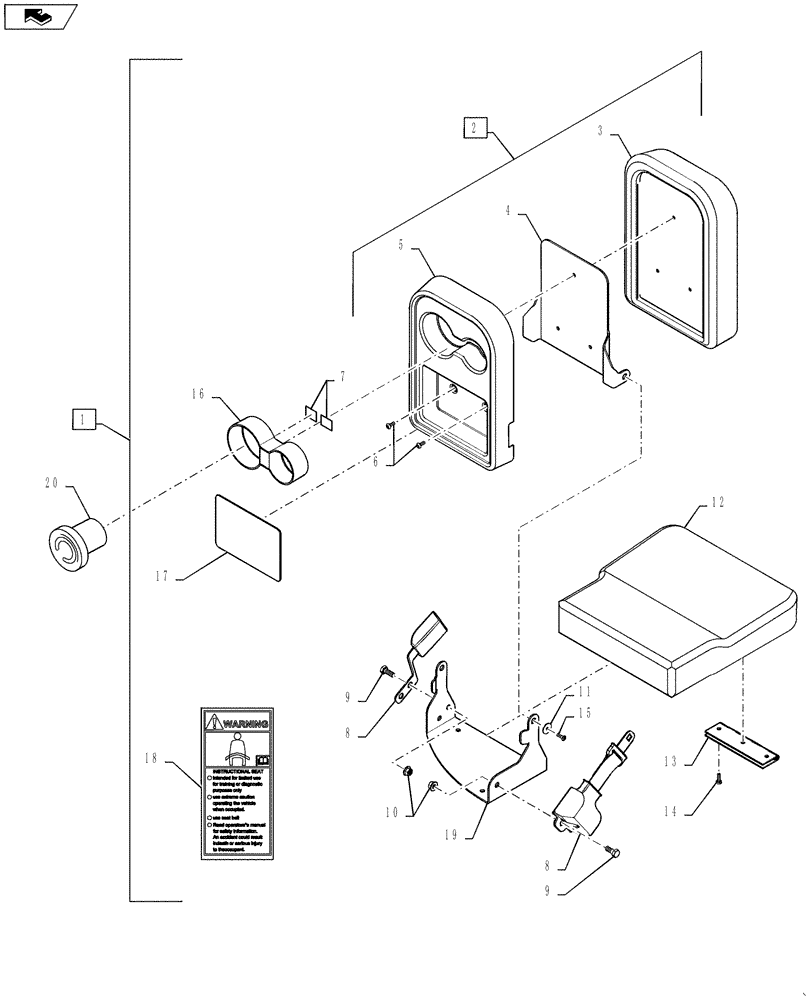

Схема запчастей Case IH 4430 - (90.120.01[02]) - INSTRUCTIONAL SEAT, DELUXE CLOTH / LUXURY LEATHER, SN YCT032077 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
9
4
3
10
11
9
6
19
17
8
2
20
15
5
16
18
1
13
7
home
8
12

Артикул

Название

Примечание

Количество

1

84466511

INSTRUCTIONAL SEAT

Case IH Wheat Cloth, Includes Ref 2 - 19

1шт.

1

84466513

INSTRUCTIONAL SEAT

Red Leather, Includes Ref 2 - 19

1шт.

2

84466518

SEAT CUSHION

Assembly, Back, Wheat Cloth, Includes Ref 3 - 6

1шт.

2

84466519

SEAT CUSHION

Assembly, Back, Red Leather, Includes Ref 3 - 6

1шт.

3

87484466

SEAT CUSHION

Instructional, Back, Wheat Cloth

1шт.

3

84142716

SEAT CUSHION

Instructional, Back, Red Leather

1шт.

4

NSS

NOT SOLD SEPARAT

Bracket, Rear Cushion, Included in Ref 2

1шт.

5

358330A1

TRAY

Instructional Seat Storage

1шт.

6

340-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

3шт.

7

406682A1

FASTENER

Dual Lock

2шт.

8

281926A2

SAFETY BELT

Instructional Seat

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

10

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

3шт.

11

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

12

84354319

SEAT CUSHION

Instructional, Wheat Cloth

1шт.

12

84354322

SEAT CUSHION

Instructional, Red Leather

1шт.

13

84373454

HINGE

Instructional Seat

1шт.

14

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

3шт.

15

906051R1

HEX SOC SCREW,Btn Hd, M6 x 10mm, Cl 12.9

2шт.

16

369635A2

HOLDER

Cup, Insert

1шт.

17

394828A1

INSERT

Insert, Instructional Seat

1шт.

18

410704A1

WARNING DECAL

Instructional Seat, A-Post

1шт.

19

84466524

BRACKET

Instructional Seat

1шт.

20

302456A1

ASH TRAY

If Used

1шт.

Выбрано товаров: 24
