(90.118.15) - ELECTRIC MIRRORS

Запчасти Case IH 4430 (90.118.15) - ELECTRIC MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

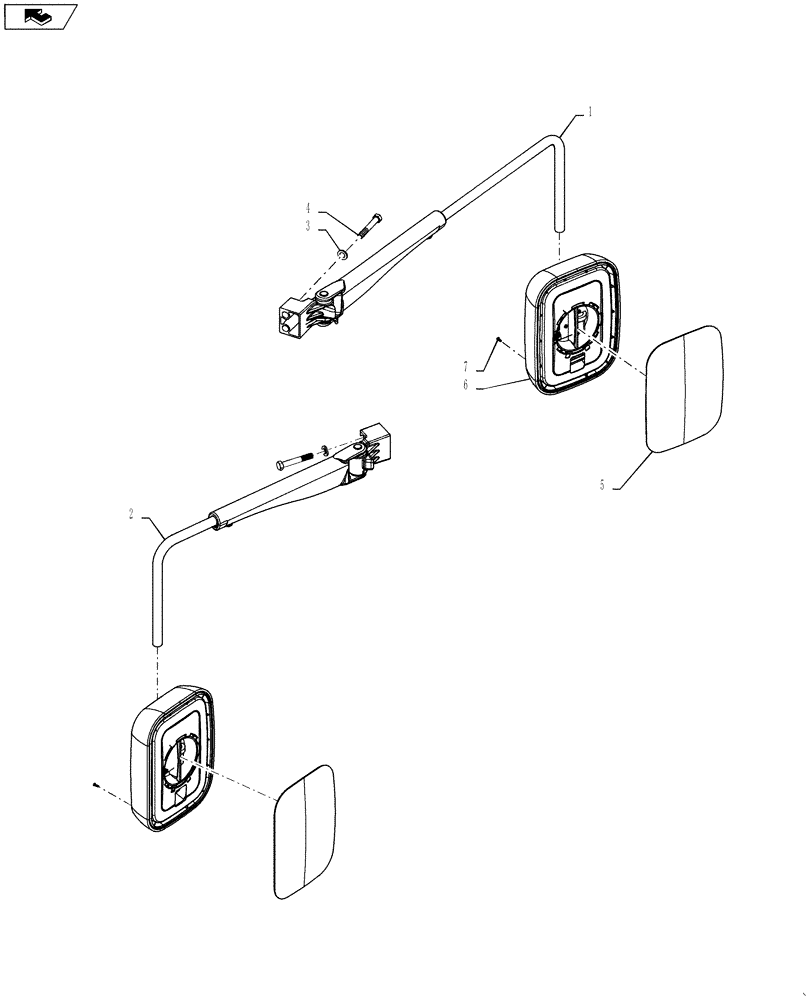

Схема запчастей Case IH 4430 - (90.118.15) - ELECTRIC MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
3
4
6
7
2
5
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87686673

ARM

Mirror, RH, Electric

1шт.

2

87703119

ARM

Mirror, LH, Electric

1шт.

3

86639330

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

4

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

5

87363066

MIRROR,238mm x 328mm

Electric

2шт.

6

87674626

COVER

Mirror Backing

1шт.

7

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

Rear Cover Screws

4шт.

8

82037339

SWITCH ASSY

Located In Cab, Not Shown

1шт.
