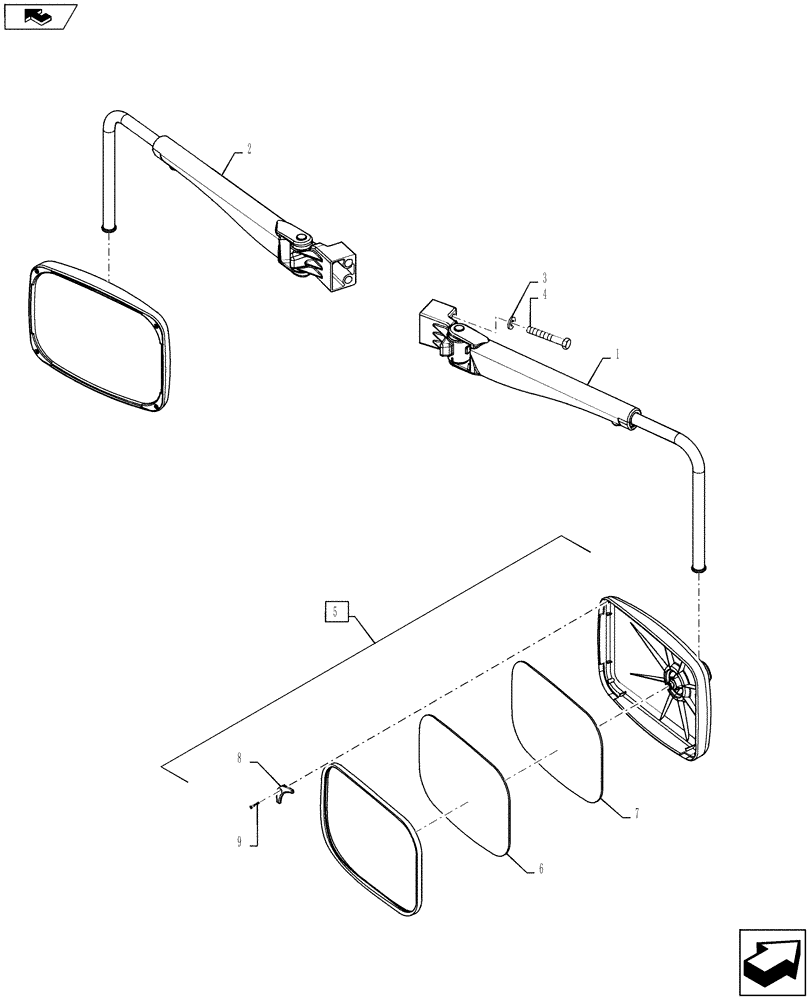

Запчасти Case IH 4430 (90.118.14) - MANUAL MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87594291

ARM

Mirror, RH Manual

1шт.

2

87703118

ARM

Mirror, LH Manual

1шт.

3

86639330

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

4

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

5

87350494

MIRROR ASSY.,240mm x 329mm

Head, Manual

2шт.

6

324437A1

REPLACEMENT MIRROR

Glass

1шт.

7

82035218

MIRROR,300mm x 200mm

Lens, 300mm x 200mm, Acrylic

1шт.

8

87531094

BRACKET

4шт.

9

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

10

84314224

DECAL

Non Mirror Switch, Not Shown

1шт.
