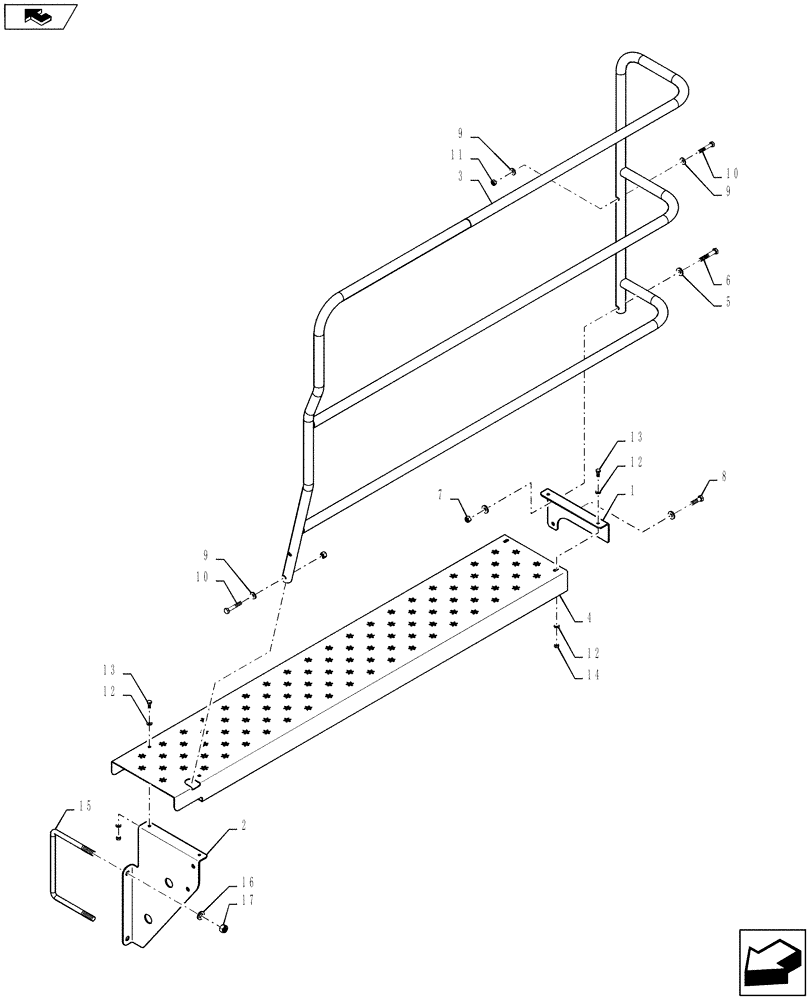

Запчасти Case IH 4430 (90.118.13) - REAR WALKWAY AND HANDRAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87741531

MOUNT

Walkway Support

1шт.

2

84286180

MOUNT

Rear Walkway

1шт.

3

84286175

HANDRAIL

Rear

1шт.

4

84286171

WALKWAY

CATWALK Rear Walkway

1шт.

5

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

6

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

7

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

8

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

9

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

10

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

3шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

12

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

8шт.

13

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

15

BN325918

U-BOLT

M16 X 256 ID X 187 IL

1шт.

16

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

2шт.

17

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.
