(90.118.10) - MIDDLE WALKWAY HANDRAIL, 90 - 100 BOOMS

Запчасти Case IH 4430 (90.118.10) - MIDDLE WALKWAY HANDRAIL, 90 - 100 BOOMS (90) - PLATFORM, CAB, BODYWORK AND DECALS

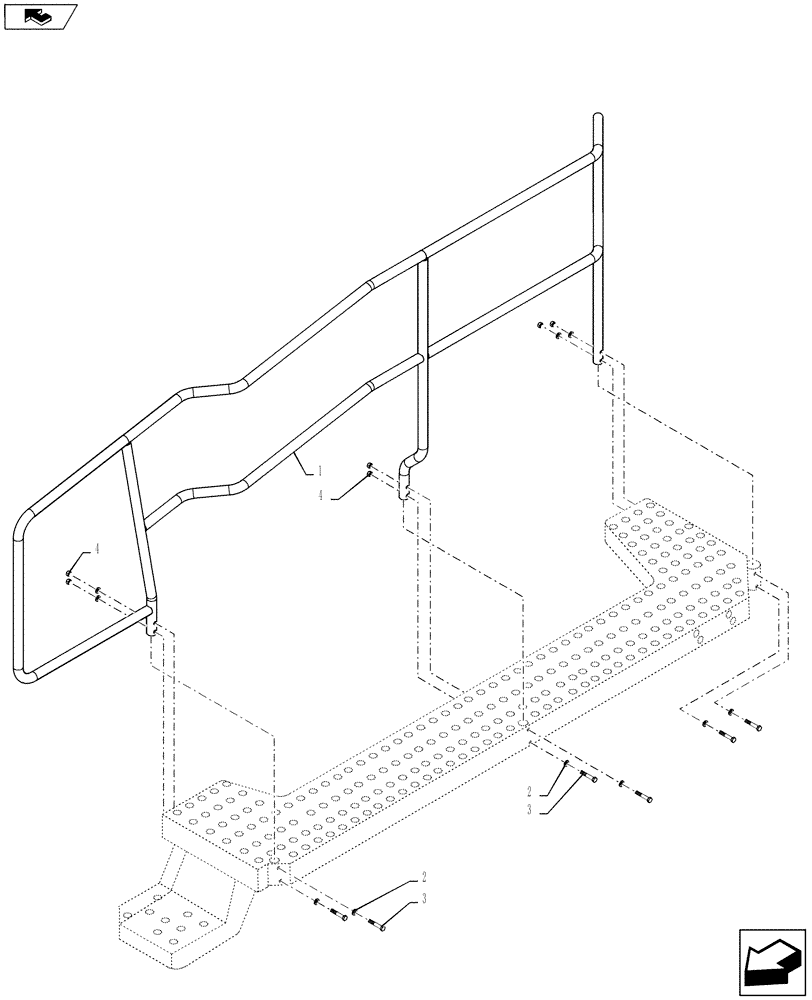

Схема запчастей Case IH 4430 - (90.118.10) - MIDDLE WALKWAY HANDRAIL, 90 - 100 BOOMS (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
2
3
3
4
4
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87265527

HANDRAIL

Mid

1шт.

2

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

10шт.

3

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

6шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.
