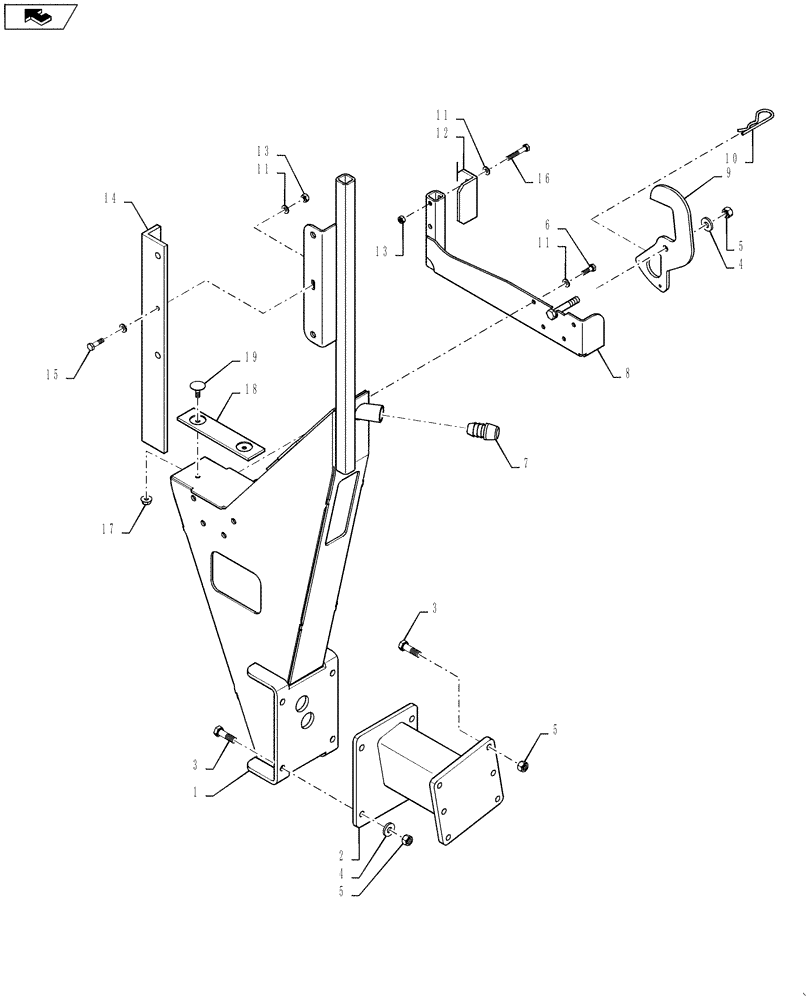

Запчасти Case IH 4430 (90.118.08) - RH BOOM CRADLE, 120 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84307000

CRADLE

Right Hand

1шт.

2

87543916

EXTENSION

1шт.

3

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

10шт.

4

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4MM, HTS, DOR, HDN

5шт.

5

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

11шт.

6

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

7

363226A1

BUMPER

Door

1шт.

8

84533949

MOUNT

Right Hand Boom Retainer

1шт.

9

84545231

HOOK

Boom Lock

1шт.

10

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

1шт.

11

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

10шт.

12

87715010

ANGLE

Lower Protector

1шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

5шт.

14

87478090

ANGLE

Upper Protector

1шт.

15

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

16

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

17

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

18

87270797

PAD

Boom Rest

2шт.

19

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.
