Запчасти Case IH 4430 (90.118.07) - LH FRONT HANDRAIL AND LH BOOM CRADLE, 120 (90) - PLATFORM, CAB, BODYWORK AND DECALS

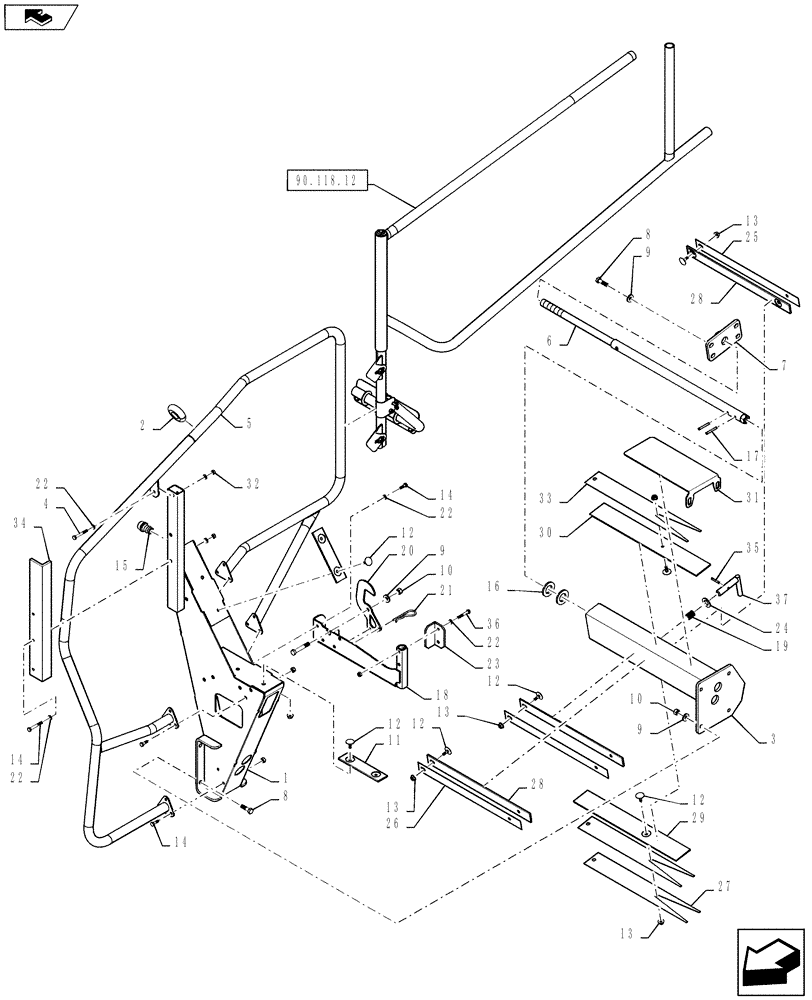

Схема запчастей Case IH 4430 - (90.118.07) - LH FRONT HANDRAIL AND LH BOOM CRADLE, 120 (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
13
16
home
11
1
33
36
25
15
14
30
22
13
28
22
14
32
26
22
19
7
24
34
12
10
4
37
23
6
12
12
90.118.12
12
14
9
8
13
28
3
2
22
35
10
9
27
12
18
8
21
13
5
31
29
17
9

Артикул

Название

Примечание

Количество

1

84306997

CRADLE

Boom, LH

1шт.

2

87267174

BUMPER

Tubular Door Stop

1шт.

3

87543915

EXTENSION

LH

1шт.

4

86980386

BOLT,Hex, M8 - 1.25 x 60mm, Cl 8.8, DOR

3шт.

5

84355014

HANDRAIL

LH Front Walkway, 120' Boom Cradle

1шт.

6

87547170

THREADED ROD

Cradle Slide

1шт.

7

87547172

BASE PLATE

Cradle Slide

1шт.

8

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

18шт.

9

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

14шт.

10

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

16шт.

11

87270797

PAD

Boom Rest

4шт.

12

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

18шт.

13

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

18шт.

14

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

20шт.

15

363226A1

BUMPER

Door

2шт.

16

87529309

WASHER,33mm ID x 56mm OD x 5mm Thk

33 x 56 x 5 mm HDN DOR

2шт.

17

87020818

LOCK PIN,1/4" OD x 2" OAL, Slotted

2шт.

18

84297361

RETAINER

LH Boom

1шт.

19

BN31937

SPRING

Compression, .905 x .765

1шт.

20

84545231

HOOK

Boom Lock

2шт.

21

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

2шт.

22

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

22шт.

23

87715010

ANGLE

Lower

2шт.

24

87528981

WASHER,0.81" ID x 1.5" OD x 0.14" Thk

1шт.

25

342581A1

SHIM

Cradle Liner, Sides

2шт.

26

342582A1

SHIM

Cradle Liner, Sides

2шт.

27

342580A1

SHIM

Cradle Liner, Bottom

1шт.

28

BN323397

LINER

Cradle Slide

4шт.

29

BN321039

LINER

Bottom

1шт.

30

BN321038

LINER

Top

1шт.

31

87681160

PLATE

Front Walkway

1шт.

32

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

33

87664090

SHIM

Cradle Liner, Bottom

2шт.

34

87478090

ANGLE

Upper

2шт.

35

BN31444

PIN, ROLL

1/4 X 1-1/2

1шт.

36

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

37

BN321930

PIN

Cradle Stop

1шт.

Выбрано товаров: 37
