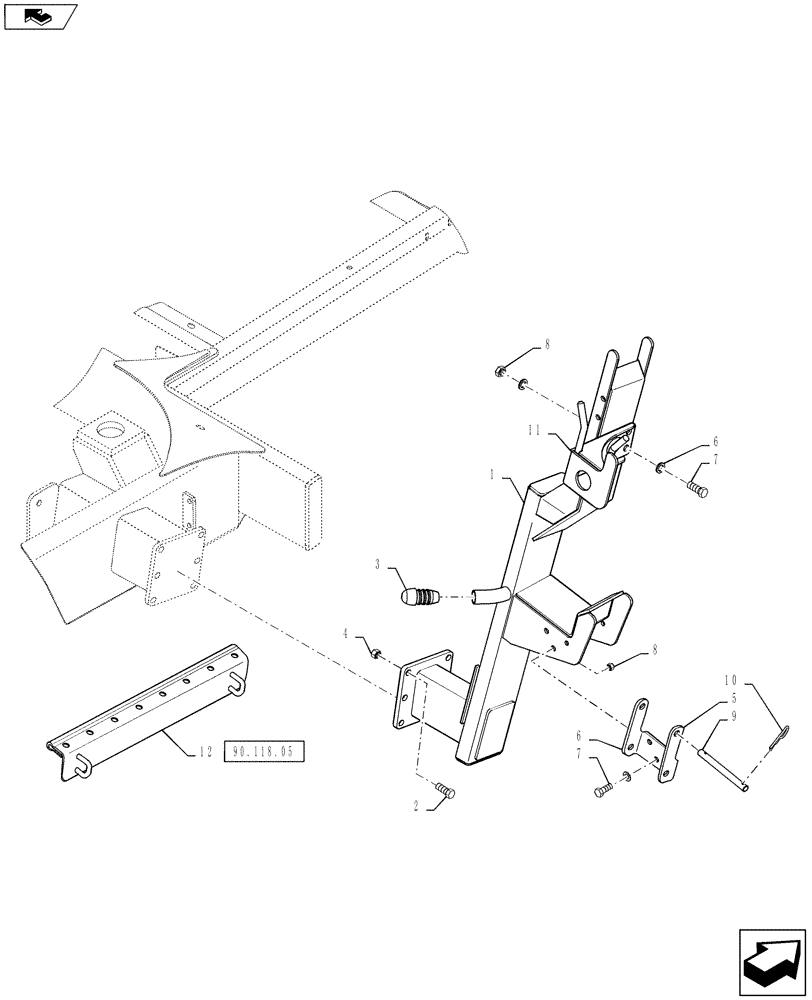

Запчасти Case IH 4430 (90.118.04) - RH BOOM CRADLE, 90/100 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84307035

CRADLE

RH Boom, 90/100'

1шт.

2

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

6шт.

3

363226A1

BUMPER

Door

1шт.

4

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

6шт.

5

84553896

LOCK

Boom Lock

1шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

11шт.

7

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

7шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

7шт.

9

342586A1

PIN,12.7mm OD x 154mm L

Boom Lock

1шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

11

84414154

GUIDE

Upper Cradle, RH

1шт.

12

87549647

MOUNT

Door Stop Assembly, RH, Boom Mounted

1шт.

See Fig 90.118.06 For Service Parts Breakdown

1шт.
