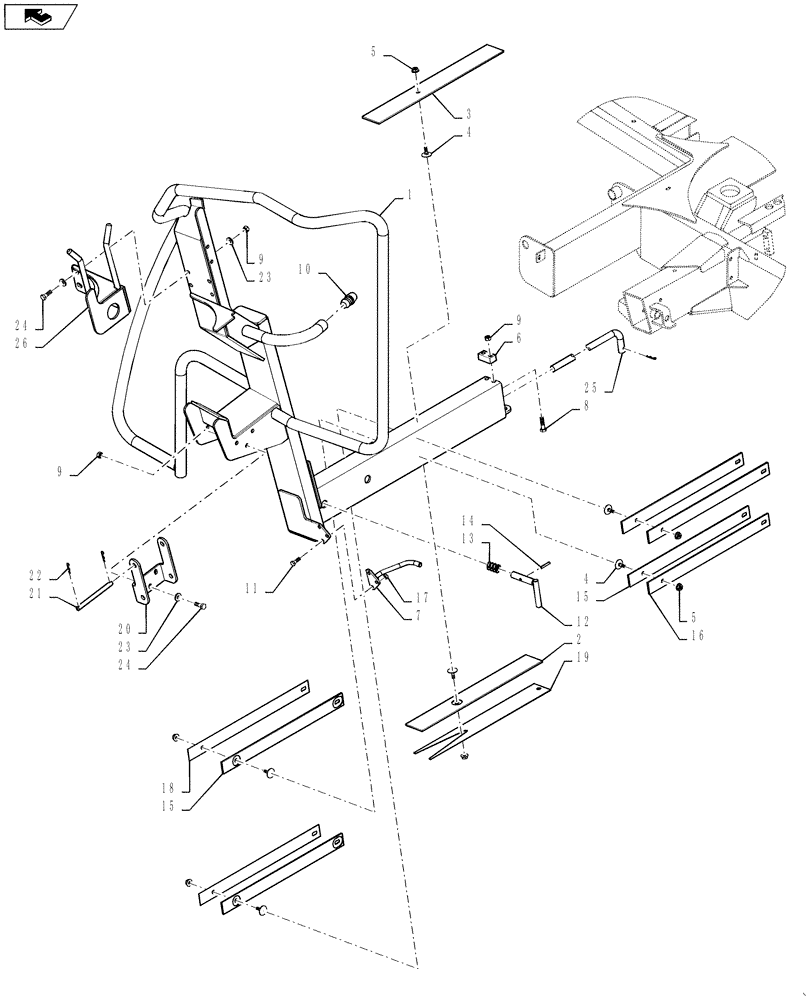

Запчасти Case IH 4430 (90.118.03) - LH FRONT HANDRAIL AND BOOM CRADLE, 90/100 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84307033

CRADLE

LH Boom, 90/100'

1шт.

2

BN321039

LINER

Bottom

1шт.

3

BN321038

LINER

Top

1шт.

4

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

10шт.

5

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

10шт.

6

BN321925

STOP

Boom Cradle

1шт.

7

BN322051

HOOK

LH

1шт.

8

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

9шт.

10

363226A1

BUMPER

Door

1шт.

11

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

12

BN321930

PIN

Cradle Stop

1шт.

13

BN31937

SPRING

Compression, .905 x .765

1шт.

14

BN31444

PIN, ROLL

1/4 X 1-1/2

1шт.

15

BN323397

LINER

Cradle Slide

4шт.

16

342581A1

SHIM

Cradle Liner, Sides

2шт.

17

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

18

342582A1

SHIM

Cradle Liner, Sides

2шт.

19

342580A1

SHIM

Cradle Liner, Bottom

1шт.

20

84553896

LOCK

Boom Lock

1шт.

21

342586A1

PIN,12.7mm OD x 154mm L

Boom Lock

1шт.

22

BN71006

COTTER PIN

1/8", #11

3шт.

23

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

11шт.

24

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

7шт.

25

343700A1

ROD

Cradle Pry

1шт.

26

84414153

GUIDE

Upper Cradle, LH

1шт.
