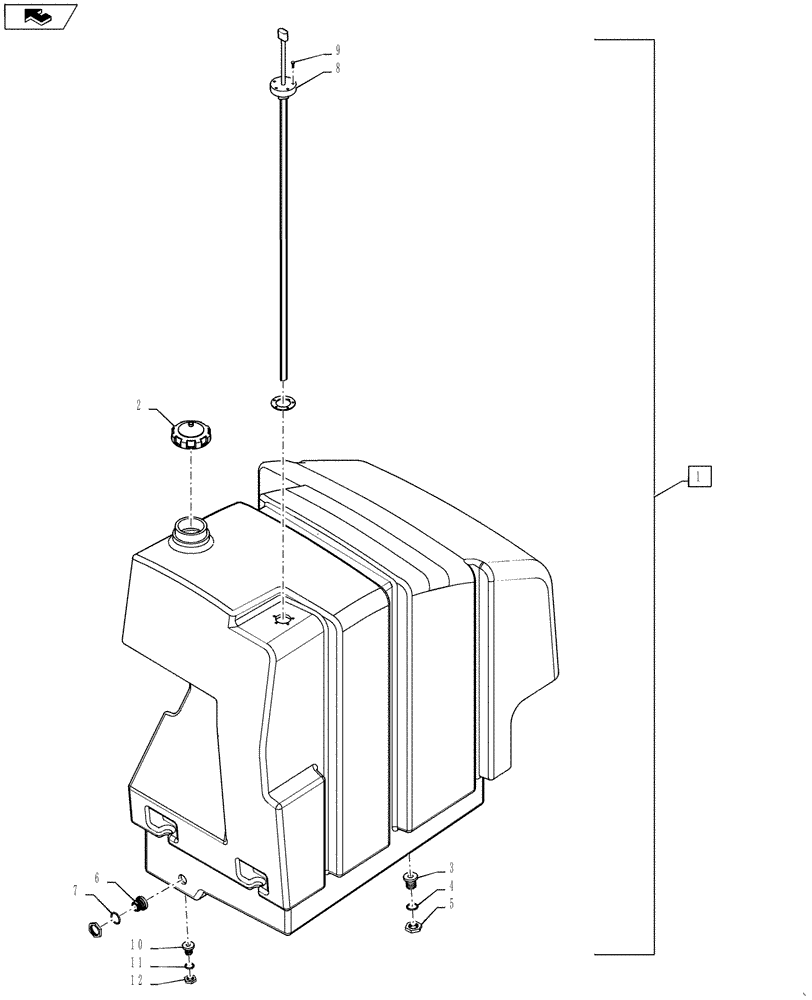

Запчасти Case IH 4430 (10.216.02) - FUEL TANK ASSEMBLY (10) - ENGINE

1

84306963

FUEL TANK

Assembly, Includes Ref 2 - 12

1шт.

2

BN68502

CAP

Vented

1шт.

3

87707148

FITTING

Fuel Tank Supply, 1"-14 LH Thread x 3/8-18 NPT

1шт.

4

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Used on Ref 3 Fitting

1шт.

5

282709A1

NUT

1" - 14 UNS - 2B, LH Thread

1шт.

6

344475A1

FITTING

Fuel Tank 1/2" NPTF

1шт.

7

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

Used on Ref 6 Fitting

1шт.

8

84176275

SENSOR

Fuel Level

1шт.

9

87270794

BOLT,Hex, M5 x 30mm, SST

M5 x 30, SS

5шт.

10

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

Fuel Tank Drain Fitting, 3/4-16 LH Thread x 1/4-18 NPT

1шт.

11

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Used on Ref 10 Fitting

1шт.

12

1251791C1

JAM NUT,3/4" - 16 LH Thread

Fuel Tank Drain, 3/4" - 16 UNF - 2A LH Thread

1шт.
