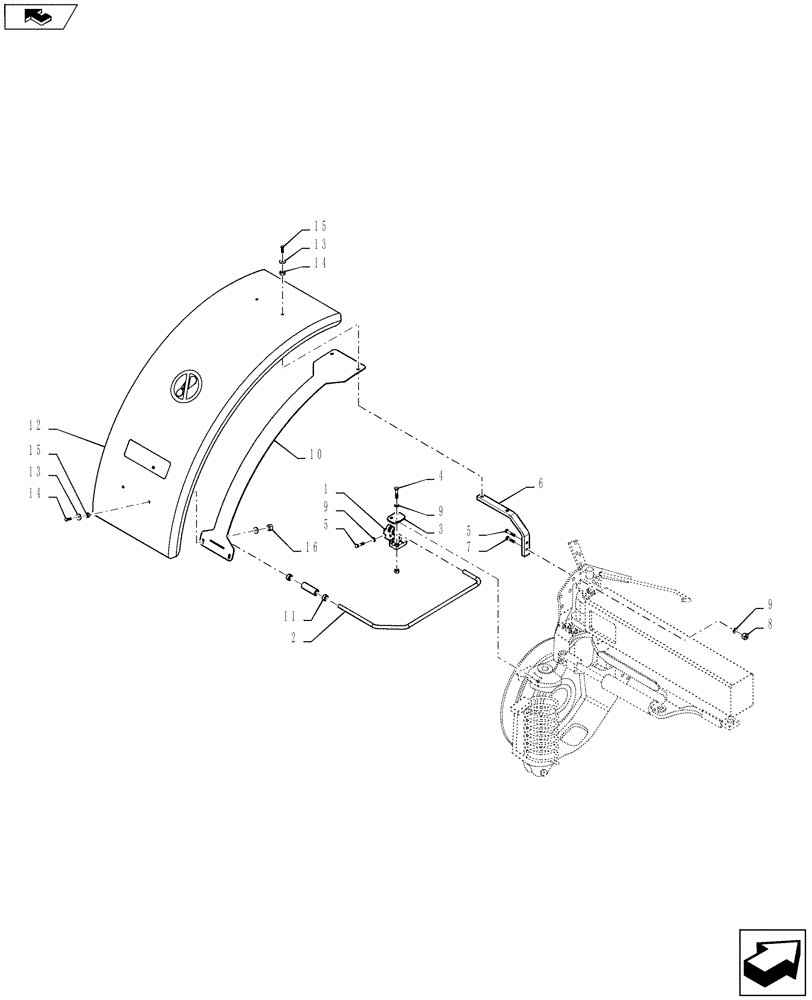

Запчасти Case IH 4430 (90.116.07) - WIDE FENDER, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84542689

MOUNT

LH Fender

1шт.

2

84542680

ROD

Fender Spring, Wide Fender, 1"

1шт.

3

84542701

PLATE

Rod Cover

1шт.

4

84543604

BOLT,Hex, M12 x 70mm, Cl 10.9

M12-1.75 X 70, 10.9, DOR

3шт.

5

84539439

BOLT,Hex, M12 x 60mm, Cl 10.9

M12-1.75 X 60, 10.9, DOR

3шт.

6

84484472

MOUNT

Fender Bar, Wide Fender

1шт.

7

87020803

BOLT,Hex, M12 x 50, 10.9

1шт.

8

87344210

NUT

5шт.

9

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

7шт.

10

84542697

SUPPORT

Fender

1шт.

11

84542715

COLLAR

Rod Locking

2шт.

12

84484468

FENDER

Long, Wide, 26" Wide

1шт.

13

BN325184

WASHER

11 x 24 x 3mm, Stainless Steel

6шт.

14

47379191

SPACER

Fender Bolt, SST

4шт.

15

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

16

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.
