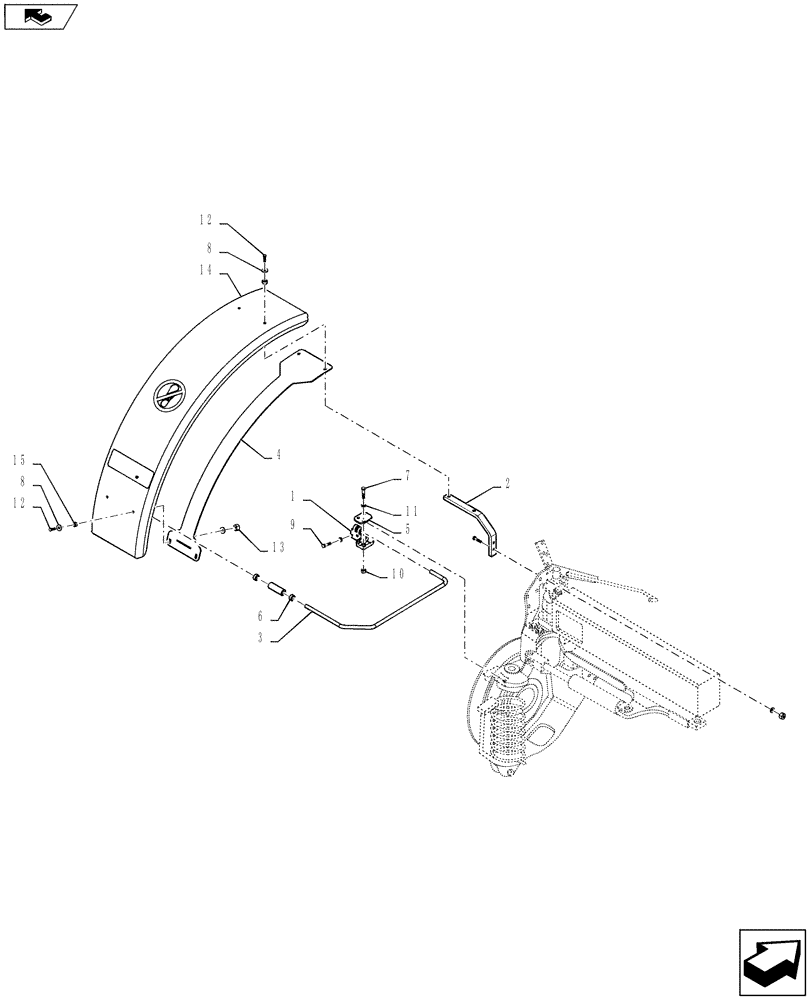

Запчасти Case IH 4430 (90.116.05) - STANDARD FENDER - LH , SN YCT032659 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84212725

MOUNT

LH Fender

1шт.

2

84219778

MOUNT

Fender Bar

1шт.

3

84219780

ROD

Fender Spring, 3/4"

1шт.

4

84219771

SUPPORT

Fender

1шт.

5

84219770

PLATE

Rod Cover

1шт.

6

84216461

COLLAR

Rod Locking

2шт.

7

84539439

BOLT,Hex, M12 x 60mm, Cl 10.9

M12-1.75 X 60, 10.9, DOR

4шт.

8

BN325184

WASHER

11 x 24 x 3mm, Stainless Steel

6шт.

9

87020803

BOLT,Hex, M12 x 50, 10.9

3шт.

10

87695422

LOCK NUT

M12, CL 10, DOR

5шт.

11

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

9шт.

12

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

13

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

14

84485478

FENDER

Long, Standard, 16-1/4" Wide

1шт.

15

BN313446

SPACER

Fender Bolt

4шт.
