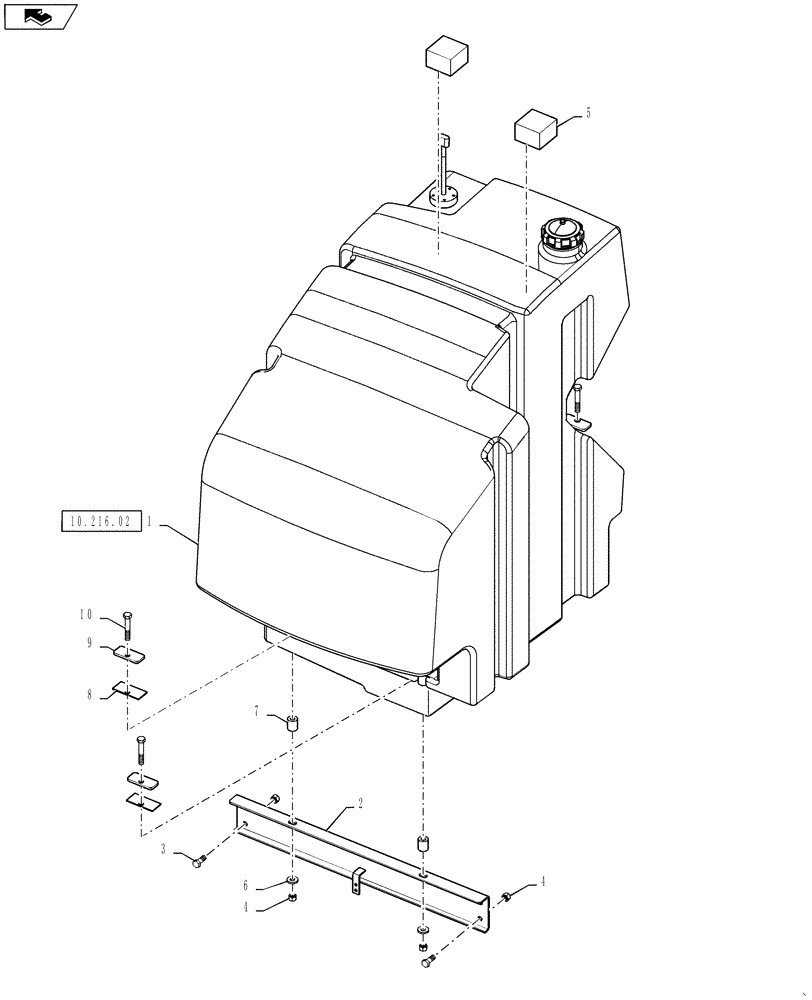

Запчасти Case IH 4430 (10.216.01) - FUEL TANK MOUNTING (10) - ENGINE

1

84306963

FUEL TANK

Assembly

1шт.

See Fig 10.216.02 For Service Parts

1шт.

2

343142A1

MOUNTING PLATE

Fuel Tank and Horn

1шт.

3

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

4

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

8шт.

5

86986299

FOAM

Hood Support

2шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

7

BN67653

BUSHING

Tank Bushing

4шт.

8

84237916

RUBBER MOUNTING

Adhesive Back

4шт.

9

BN67652

PLATE

Tank Holddown

4шт.

10

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

4шт.
