Запчасти Case IH 4430 (90.115.01) - RH CONSOLE HOUSINGS (90) - PLATFORM, CAB, BODYWORK AND DECALS

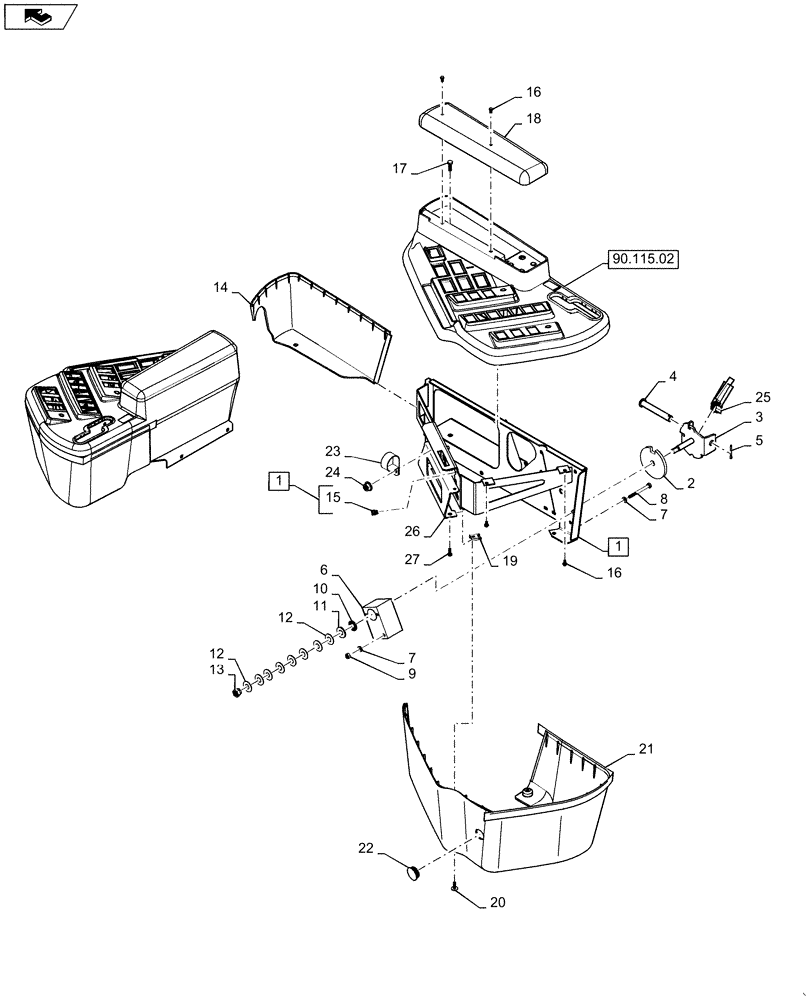

Схема запчастей Case IH 4430 - (90.115.01) - RH CONSOLE HOUSINGS (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
7
9
12
1
5
11
2
90.115.02
14
12
27
10
20
6
22
3
17
16
15
13
26
21
7
19
24
25
18
8
4
23
16
1

Артикул

Название

Примечание

Количество

1

84325955

MOUNT

RH Console, Includes Ref 15

1шт.

2

251090A1

THRUST WASHER

Wear

1шт.

3

87578140

SUPPORT

Propel Lever Control

1шт.

4

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1шт.

5

432-816

COTTER PIN,1/8" x 1"

1шт.

6

87492829

MOUNT

Propel Level Position Sensor

1шт.

7

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

2шт.

8

86980367

BOLT,Hex, M6 x 60mm, Cl 8.8

M6-1 x 60, 8.8, DOR

1шт.

9

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.

10

159688R91

THRUST BEARING

1шт.

11

87529248

WASHER,0.47" ID x 1" OD x 0.1" Thk

0.469 x 1 x 0.105 HTS DOR HDN

1шт.

12

1994980C1

BELLEVILLE WASHER

Friction Control

8шт.

13

BN305066

NUT,7/16" - 14, Gr 8

7/16-14, FLN, G8

1шт.

14

130412A1

COVER

RH Console, Rear Skirt

1шт.

15

336304A1

INSERT

Threaded

6шт.

16

87343621

SCREW,Hex Wshr Hd, M4 x 10mm, Cl 4.9, Full Thd

4шт.

17

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

18

128970A3

ARMREST

RH Console

1шт.

See Fig 90.115.03 For Service Parts Breakdown

1шт.

19

131-642

SPRING NUT,Tinn, U, #10

4шт.

20

357481A1

SCREW,Truss, #10 - 16 x 3/4"

#10-16 X 3/4 PH Truss

4шт.

21

118321A2

SKIRT

RH Console, Front Skirt

1шт.

22

353-426

PLUG,1" Hole, Nylon

1шт.

23

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

24

87344227

SERRATED NUT

Serrated, M8, SPL, DOR

1шт.

25

128593A1

SPRING

Propulsion Handle Torsion

1шт.

26

84325962

MOUNT

RH Console

1шт.

27

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

2шт.

Выбрано товаров: 28
