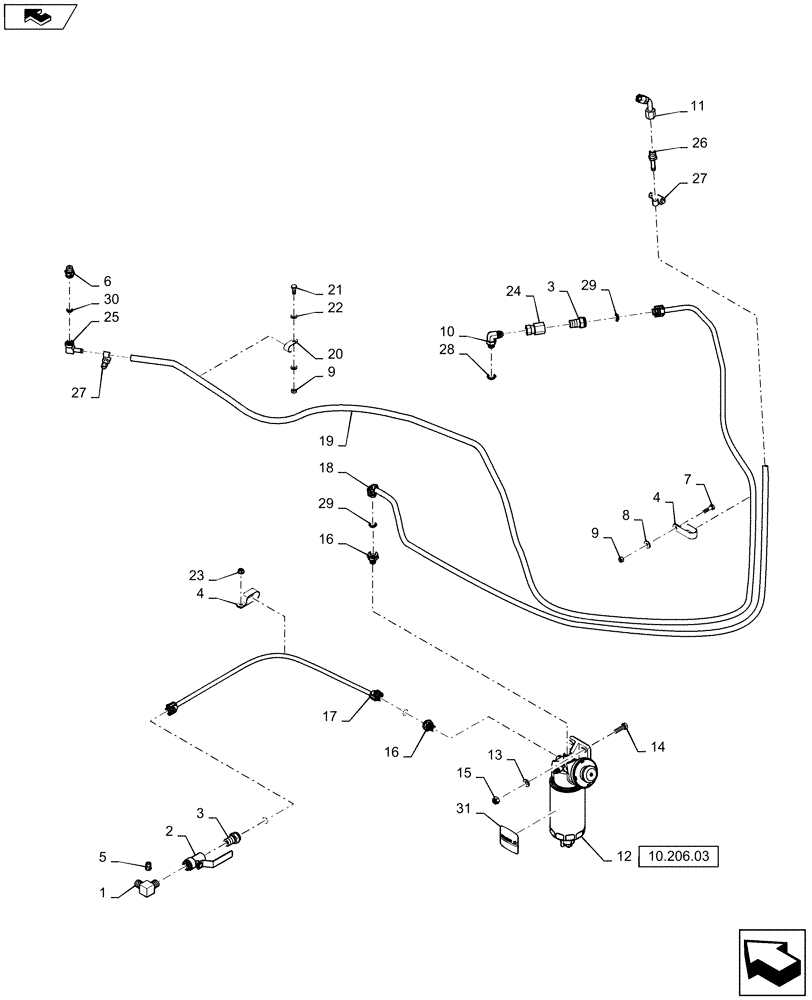

Запчасти Case IH 4430 (10.214.01) - FUEL LINES AND FITTINGS (10) - ENGINE

1

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

2

87265539

VALVE

Ball Valve, 1/2" NPT Full

1шт.

3

87270102

FITTING,1/2" NPTF to Quick Connect

Brass, NG12 X 1/2 NPTF

2шт.

4

R54363

CLAMP

Double

3шт.

5

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

6

87270105

FITTING

Brass, NG8 X 3/8 NPTF

1шт.

7

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

10

5154710

ELBOW,3/4"-16 UNF, M16 x 1.5

90º, 3/4" - 16 Male x M16 - 1.5

1шт.

11

84342025

ADAPTER

M16 X 1.5 F 24 DEG Swivel X 3/8 NPT F

1шт.

12

84348875

FILTER ASSY

Assembly

1шт.

See Fig 10.206.03 For Service Parts

1шт.

13

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

14

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

16

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

M14 x 1.5

2шт.

17

84278012

FUEL HOSE

, Serial Range: Tank-Filter

1шт.

18

84278013

FUEL HOSE

, Serial Range: Filter-Engine

1шт.

19

84470462

HOSE

Return, Serial Range: Engine-Tank

1шт.

20

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

21

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

22

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

23

87344227

SERRATED NUT

Serrated, M8, SPL, DOR

1шт.

24

84329841

HYD CONNECTOR,3/4" - 16 x 1/2" - 14

3/4-16 x 1/2-14 NPT

1шт.

25

87400460

90 ELBOW

3/8" Hose x NG-8

1шт.

26

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

1шт.

27

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

28

14437885

O-RING,13.30mm ID x 2.40mm

Used on Ref 10

1шт.

29

87445405

O-RING

Used on Ref 17 and 18

4шт.

30

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

Used on Ref 25

1шт.

31

87405724

EMBLEM

CIH Logo

1шт.
