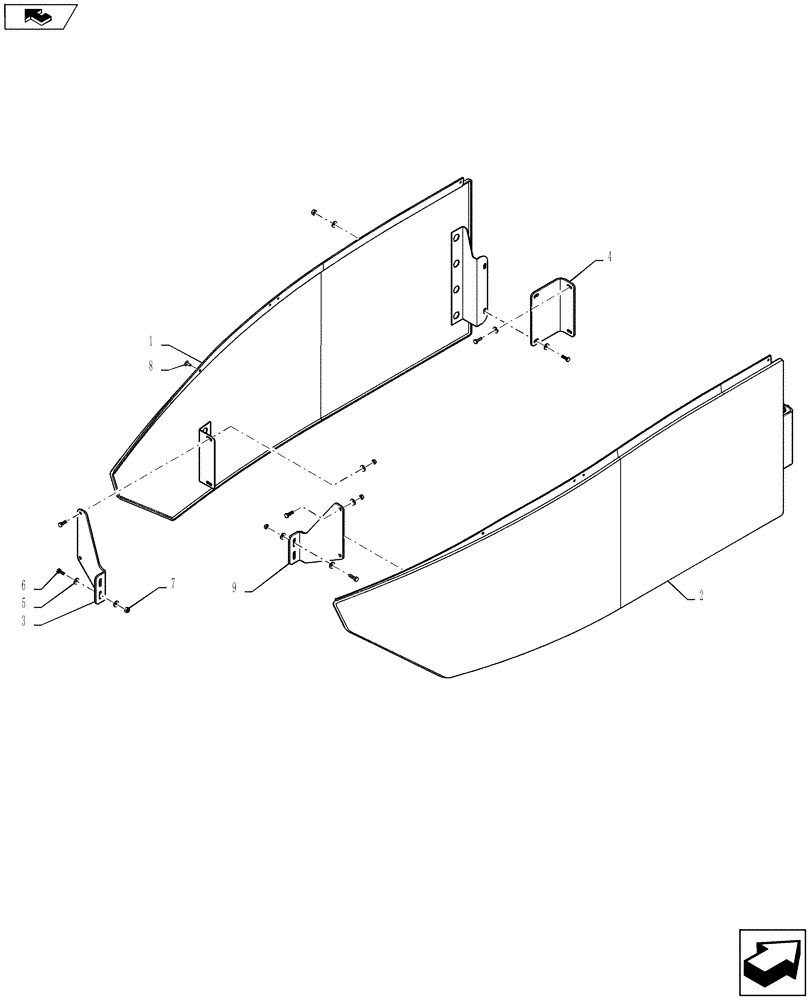

Запчасти Case IH 4430 (90.100.06) - ENGINE HOOD, SIDES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84297978

ENGINE HOOD

Side, RH

1шт.

2

84297979

ENGINE HOOD

Side, LH

1шт.

3

84372994

MOUNT

Side Hood, LH Rear

1шт.

4

84255644

MOUNT

Side Hoods, Front

2шт.

5

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

24шт.

6

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

16шт.

7

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

12шт.

8

87268898

RIVET

1/4 X .80 Long

8шт.

9

84372997

MOUNT

Side Hood, RH Rear

1шт.
