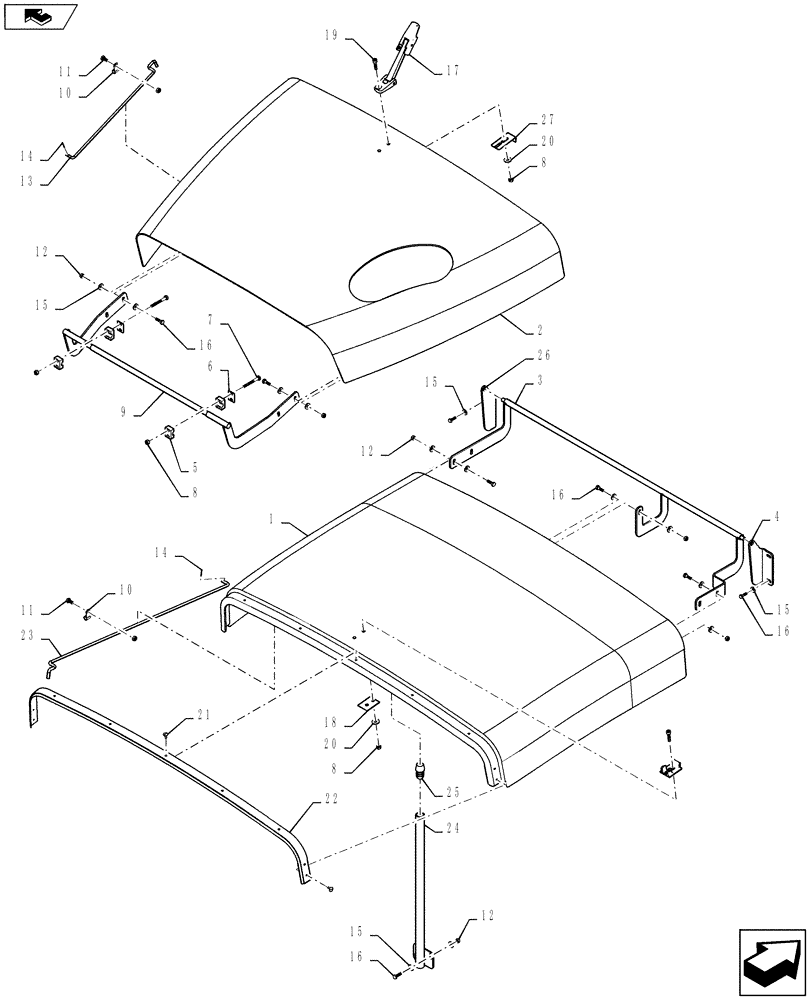

Запчасти Case IH 4430 (90.100.05) - ENGINE HOOD, TOP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84297975

ENGINE HOOD

Top, Front

1шт.

2

84297976

ENGINE HOOD

Top, Rear

1шт.

3

84409687

HINGE

Hood, Front

1шт.

4

84409723

MOUNT

Hinge, Hood, RH

1шт.

5

BN315164

CLAMP

Single, 5/8 Tube

2шт.

6

BN309485

PLATE

Single, Size 2

2шт.

7

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 1 X 50, 8.8, DOR

4шт.

8

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

9

84409647

HINGE

Rear Hood

1шт.

10

516-2295

CLAMP,J, 7/16" Insul, 5/16" Bolt

2шт.

11

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

12

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

13шт.

13

84255901

ROD

Rear Hood

1шт.

14

733-2520

COTTER PIN,M2.5 x 20

2шт.

15

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

26шт.

16

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

15шт.

17

BN310732

LATCH

Hood

1шт.

18

BN315616

LATCH

Mount

1шт.

19

87343627

SCREW

M6X25 CL 8.8 DOR

4шт.

20

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

4шт.

21

87268898

RIVET

1/4 X .80 Long

9шт.

22

84271483

BELT

Hood Seal

1шт.

23

84480519

ROD

Front Hood Prop

1шт.

24

84259568

SUPPORT

Hood

1шт.

25

363226A1

BUMPER

Door

1шт.

26

84373390

SUPPORT

Hood Latch

1шт.

27

84409725

MOUNT

Hood Hinge, LH

1шт.
