Запчасти Case IH 4430 (90.100.04) - ENGINE HOOD, FRONT GRILLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

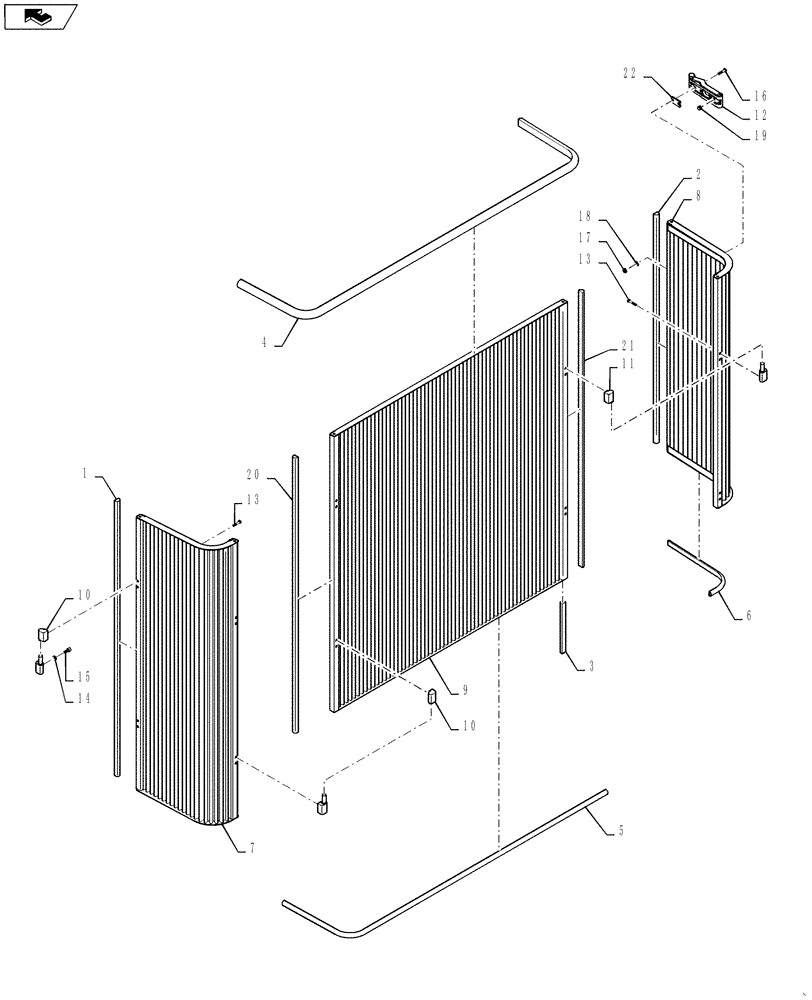

Схема запчастей Case IH 4430 - (90.100.04) - ENGINE HOOD, FRONT GRILLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
17
18
1
11
6
21
10
16
8
7
home
12
13
3
13
19
10
20
9
4
14
22
2
5

Артикул

Название

Примечание

Количество

1

84233491

SEAL

Bulb Seal

2шт.

2

84233492

SEAL

Bulb Seal

2шт.

3

84233493

SEAL

Bulb Seal

1шт.

4

84299990

SEAL

Bulb Seal

1шт.

5

84299991

SEAL

Bulb Seal

1шт.

6

84233495

SEAL

Bulb Seal

1шт.

7

87267793

GRILLE

Radiator, RH

1шт.

8

BN322404

GRILLE

Radiator, LH

1шт.

9

84299968

RADIATOR GRILLE

Center

1шт.

10

BN306290

HINGE

Nylon

4шт.

11

BN306286

HINGE

Nylon

2шт.

12

BN307683

LATCH

Soft, With Conceal Keep

2шт.

13

86980363

BOLT,Hex, M6 - 1 x 35mm, Cl 8.8, DOR

M6-1 X 35, 8.8, DOR

20шт.

14

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

4шт.

15

87343625

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

M6 X 16 CL8.8, DOR

4шт.

16

84527306

SCREW,Phillips Drive, Pan HD, M4 x 25mm, Cl 5.8

M4 X 25 Pan Head, 5.8 DOR

4шт.

17

87344029

NUT,Prev Torque, M4, 0.7 Pitch, Cl 8, DOR

4шт.

18

87529300

WASHER,4.4mm ID x 9mm OD x 0.8mm Thk

4.4 X 9 X 0.8mm CST DOR

4шт.

19

151-515

RIVET,Pop, .146" x .425"

4шт.

20

87267631

SEAL

Foam

1шт.

21

87267632

SEAL

Foam

1шт.

22

84526712

SPACER

Latch Spacer

2шт.

Выбрано товаров: 22
