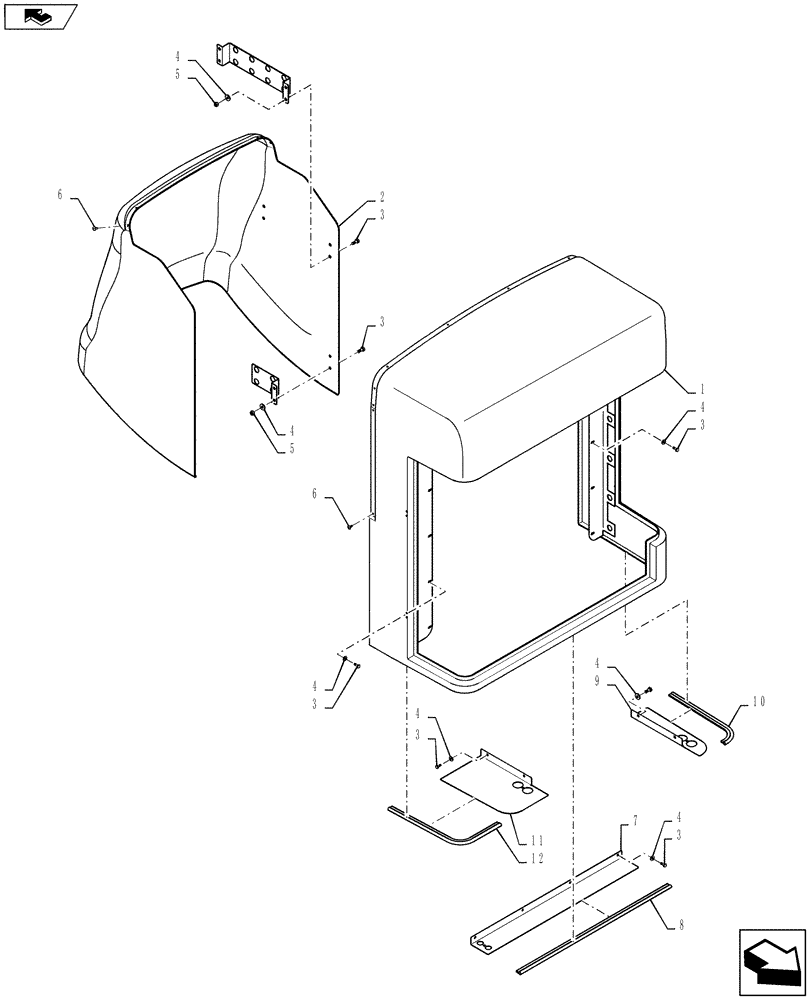

Запчасти Case IH 4430 (90.100.03) - ENGINE HOOD, FRONT AND REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84297974

ENGINE HOOD

Front

1шт.

2

84297977

ENGINE HOOD

Rear

1шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

30шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

30шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

12шт.

6

87268898

RIVET

1/4 X .80 Long

16шт.

7

84271845

BAFFLE

Hood, Front

1шт.

8

84271853

SEAL

Baffle Front

1шт.

9

84478924

BAFFLE

Hood, Front, LH

1шт.

10

84271854

SEAL

Baffle, RH Side

1шт.

11

84481500

BAFFLE

Hood, Front, RH

1шт.

12

84303629

SEAL

Baffle, LH Side

1шт.
