(90.100.02) - FRONT HOOD, LOWER

Запчасти Case IH 4430 (90.100.02) - FRONT HOOD, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

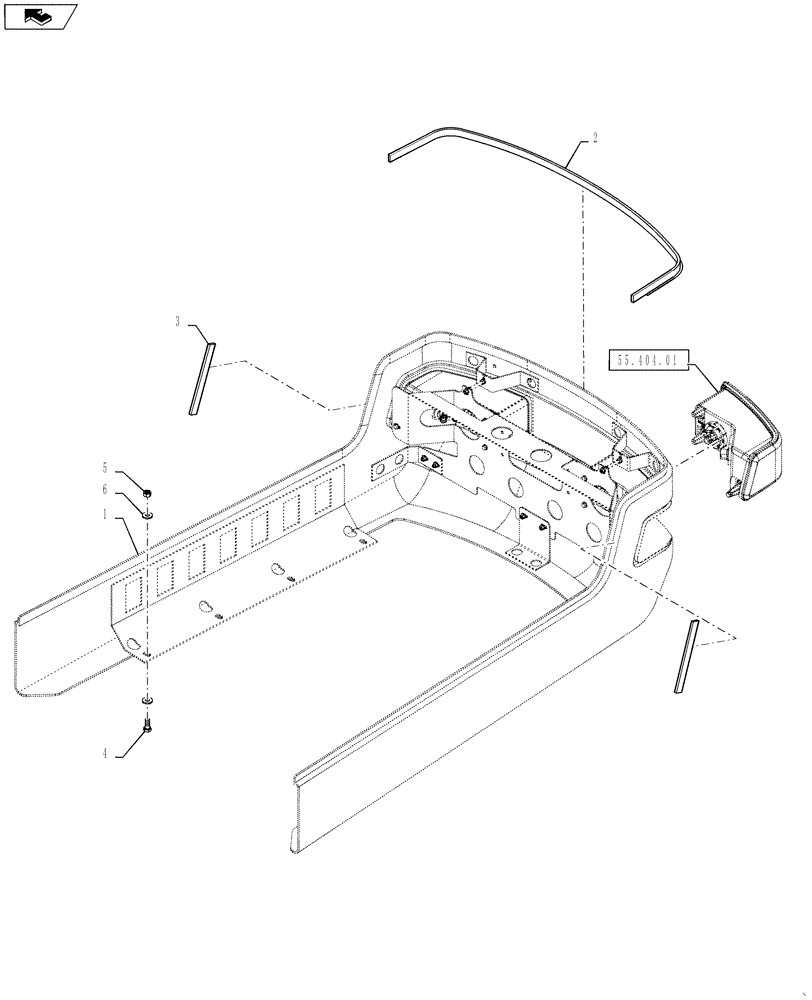

Схема запчастей Case IH 4430 - (90.100.02) - FRONT HOOD, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
2
home
55.404.01
6
5
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84304994

HOOD

Front, Lower

1шт.

2

342538A1

FOAM

Fuel Tank Hood

1шт.

3

87531216

FOAM

Lower Hood to Fuel Tank Hood

2шт.

4

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

DOR

8шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.
