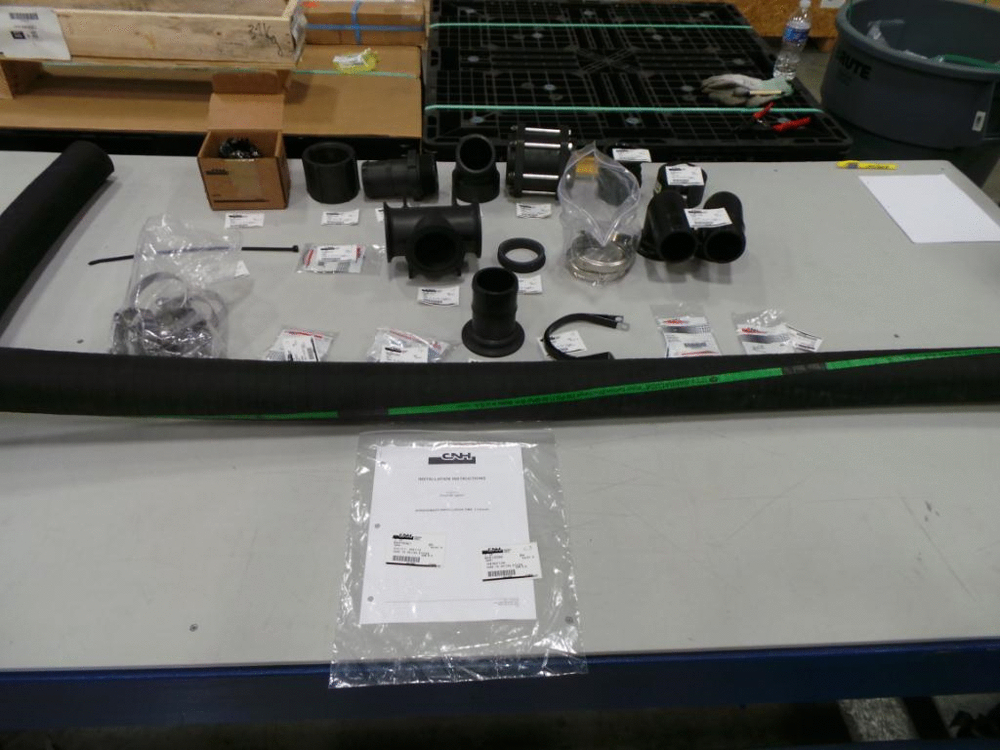

Запчасти Case IH 4430 (88.041.01) - PACKAGE FRONT FILL (88) - ACCESSORIES

1

84479361

DIA KIT, ADD PROD

Incl 2 - 23

1шт.

2

84514590

INSTRUCTION

1шт.

3

84410641

MOUNT

1шт.

4

84410722

PIPE COUPLING,76.2mm ID x 91.281mm L

1шт.

5

BN85678

FITTING

1шт.

6

84380164

ELBOW,3" 45 Degree Poly Street Elbow

1шт.

7

BN303208

VALVE

1шт.

8

84380173

ADAPTER,3" Male Adapter-3" Male Thread

1шт.

9

87609772

DUST CAP,3" Cap

1шт.

10

306132C1

CABLE TIE,14.5" L

1шт.

11

416624A1

ROPE

1шт.

12

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

1шт.

13

BN321073

GASKET,3" Flange, EPDM

3шт.

14

BN321074

CLAMP,101.6mm

3шт.

15

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

2шт.

16

BN2403395

CLAMP

8шт.

17

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

18

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

33шт.

19

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

1шт.

20

87021162

CLAMP,88.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

21

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

22

47393250

HOSE

1шт.

23

47393249

HOSE

1шт.
